Regulator - Nitrogen 28,000 Kpa

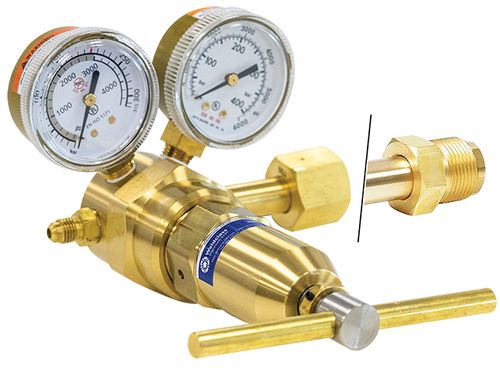

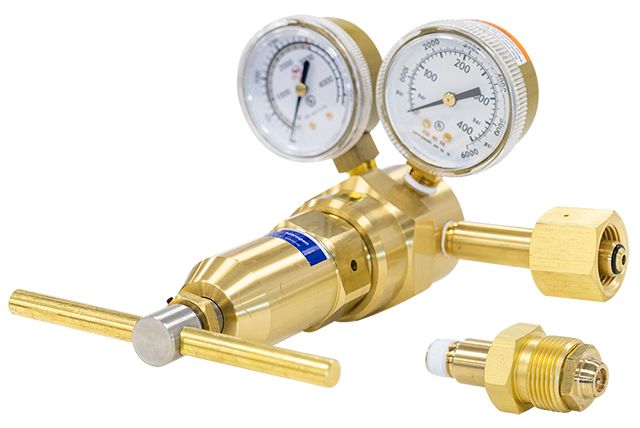

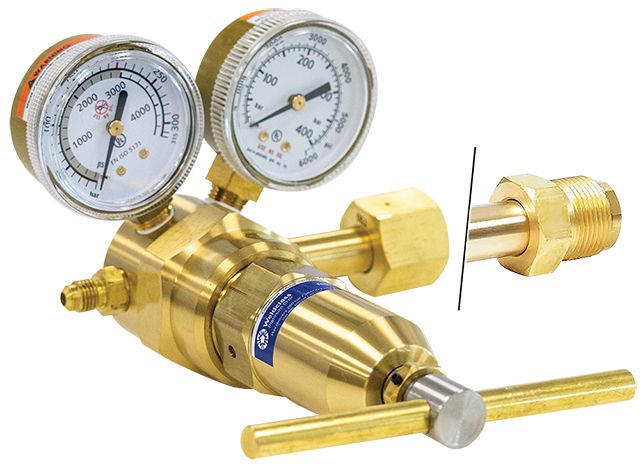

Now available with 7-year warranty. Extra-high pressure (EHP) Nitrogen Regulator for applications requiring delivery pressures of up to 28,000 Kpa (4,000 psi / 280 Bar). Robust design to withstand the rigours of site work. Fitted with Type 50 (female) inlet for connection to standard nitrogen cylinders and supplied with additional Type 51 inlet for connection to EHP (extra high pressure) cylinders if required. PLATINUM series, no quality short-cuts. Designed and manufactured by a team with over 40 years experience in gas equipment engineering.

Where to buy

Image Image Part No. Description Retail Incl. GST Where to Buy Enquiry Qty
Regulator Nitrogen PLATINUM EHP 0-28,000 Kpa T50/51 Weldclass
WC-03400
0-28,000kpa / 0-4,000psi - Supplied with T50 inlet (fitted) and T51 inlet (additional parts)
Retail Incl. GST: $990.00
Regulator Nitrogen PLATINUM EHP 0-28,000 Kpa T50/51 Weldclass
WC-03400
0-28,000kpa / 0-4,000psi - Supplied with T50 inlet (fitted) and T51 inlet (additional parts)
WC-03400
$990.00
View Enquiry List
Ask a Question
Also Known As:
Nitrogen Gas Regulator, Nitrogen Regulator Kit, Weldclass Platinum EHP series
WC-03400 104.18


KEY FEATURES

  • 7-Year Warranty*
  • Heavy-duty Platinum series
  • Piston-sensing for smooth & reliable pressure adjustment



PRESSURE CAPACITY

  • Max Delivery: 28,000KPa / 280 bar / 4,000psi
  • Max Inlet (cylinder pressure): 40Mpa / 40,000Kpa / 400 bar / 5,800psi



CONNECTIONS

  • Outlet: 1/4 Flare (JIC 37° Flare Fitting) with thread size 7/16-20 (= approx 11.1mm O.D.)*
    *Note: Australian Standards does not permit use of 5/8" UNF outlet on regulators exceeding 2,000 kpa output
  • Inlet - Fitted to regulator: Type 50 (W24x2 14 TPI RH Female nut)
  • Inlet - Supplied with regulator as an additional part: Type 51 (1.045" NGO 14 TPI RH Male nut with spigot), can be used if regulator will be fitted to EHP (extra high pressure) cylinders
  • Port (inlet & outlet port hole in regulator body): 1/4" NPT (tapered)



OTHER SPECIFICATIONS

  • Flow Coefficient Value: Cv 0.11 / Kv 0.095
  • Operating (ambient) temperature range: -20°c - +60°c



*Standard warranty 12 months, with extended 7 year warranty available if registered online after purchase, click here for details.
