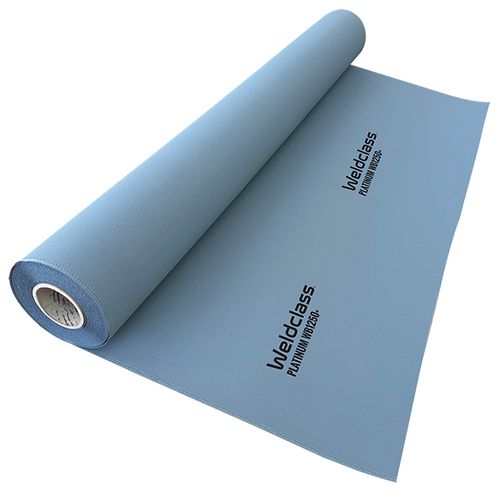

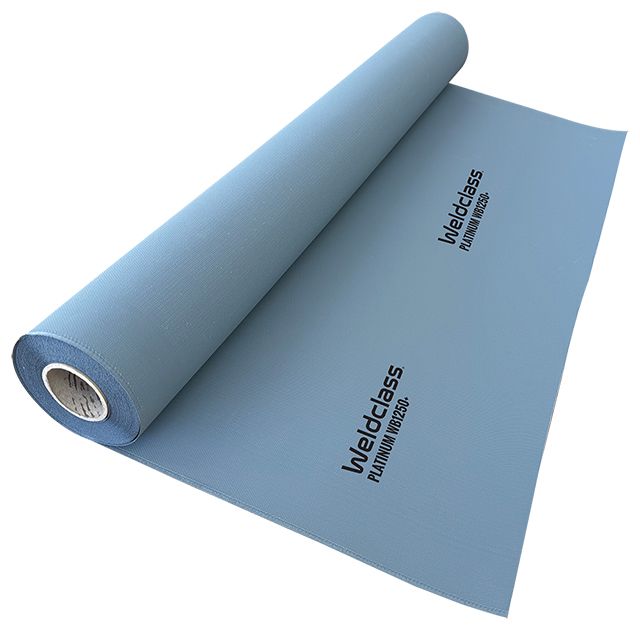

Welding Blankets PLATINUM WB1250+
Not your average welding blanket! PLATINUM WB1250+ is a 'next generation' high-temperature fabric with a high-tech proprietary coating that provides superior performance and safety/ergonomics. This allows PLATINUM WB1250+ fabric to be lightweight, whilst offering protection and durability that is superior to other much thicker & heavier fabrics. Provides max working temperature exposure of 1200°c and up to 1600°c short duration exposure.
Unlike most other high-temperature welding blankets / fabrics, PLATINUM WB1250+ is completely non-irritant, does not shed dust or raw fibres, and is very safe and comfortable to handle. Resists fraying and can be easily cut to any required length or shape.
Blanket Selection Chart Blanket Range Pdf
Unlike most other high-temperature welding blankets / fabrics, PLATINUM WB1250+ is completely non-irritant, does not shed dust or raw fibres, and is very safe and comfortable to handle. Resists fraying and can be easily cut to any required length or shape.
Blanket Selection Chart Blanket Range Pdf
Also Known As:
Welding Blanket / Welding Drape / High Temperature Blanket
Disclaimer:
As applications and usage conditions vary widely, no warranty or fitness for use in any specific application is implied or intended. In critical applications, blankets should always be tested/trialed to determined if they offer adequate protection. E.&O.E.
WC-06690 203.11
KEY FEATURES
- High-tech proprietary coating provides superior performance & safety vs most other types of high-temperature blankets
- Max recommended working temperature / exposure: 1200°c
- Max short term / momentary heat resistance: ~1600°c
- Coating on both sides of blanket completely seals / impregnates base fibres, providing a smooth, non-hairy finish
- Non-irritant, very safe, comfortable and easy to handle
- Resists spark penetration between fibres that can occur with other blankets
- Does NOT shed dust / fibres, which is an eye / skin / respiratory hazard associated with most other high-temp blankets
- Does not give off toxic / harmful fumes when in contact with heat / flame
- Smooth surface enables spatter and dross to cascade away, when used as a drape with blanket on an inclined surface
- Strong, durable, tear-resistant, and abrasion-resistant
- Lightweight: special coating allows WB1250+ fabric to be lightweight, whilst offering protection that would usually only be achieved with much thicker & heavier fabrics
- Safer & easier handling and transport (1x23m roll weighs ~12kg), compared to other blanket rolls that can weight up to 50kg or more
- Resistant oils and solvents (which can contaminate blankets and become a fire hazard)
- Can be easily cut to any required length or shape using knife or scissors, leaving a smooth edge that resists fraying, and with no shedding of raw fibres that cause irritation
APPLICATION INFO*
- For protection against sparks, spatter, light molten metal splash, and intermittent flame
- Suitable for protecting objects during grinding, welding, oxy cutting, gouging, etc
- Not recommended for heat treatment / stress relieving (wrapping of heated objects to slow cooling). For this application, fabrics/blankets with a higher density / weight (such as Promax WB550, WB1000, or WB1100) are recommended for maximum heat insulation / retention.
- Withstands intermittent short-duration flame exposure, however not recommended for prolonged / constant direct flame exposure. For resistance against longer-duration flame exposure, Promax WB1100 is more suitable.
SPECIFICATIONS
- Max recommended working temperature / exposure: 1200°c
- Max short term / momentary heat resistance: ~1600°c
- Nominal Thickness: 0.5mm
- Nominal Weight: 500g/m2
- Colour: Grey
- Base fabric: Glass fibre with special proprietary non-toxic, inorganic, non-flammable coating
INSTRUCTIONS FOR USE
- If protecting critical or costly surfaces / items, allways use more layers initially, and test on a non-critical surface first
- When using for surface protection: If possible use on an incline of at least 15 degrees, or when neccessary to use in horizontal position add more layers
- Where the blanket is in closer proximity to the source of sparks etc, consider adding more layers of blanket/fabric as the sparks/spatter will have less time to cool and will be at a higher temperature at the point of touching/impact with the blanket
- Cut blanket to any required length or shape using sharp knife or scissors
- Does not require any special PPE to handle the blanket itself, however use of eye, hand, and respiratory protection is always recommend for protection against any dust & debris that has fallen on the blanket during use
*As applications and usage conditions vary widely, no warranty or fitness for use in any specific application is implied or intended. In critical applications, blankets should always be tested/trialed to determined if they offer adequate protection. E.&O.E.
