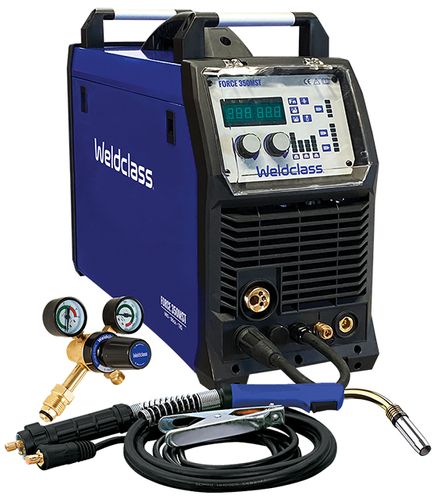

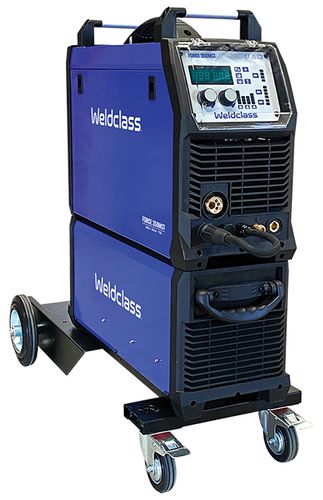

MIG / Stick / TIG Welder - FORCE 350MST*
Now available with 7-year warranty.

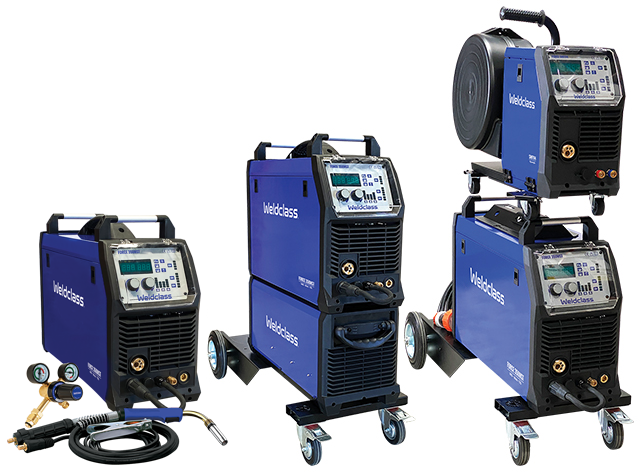

The Force 350MST* offers 3-phase power with easy-to-use controls and flexible package options. The power source has it's own wire feed system to allow use as: a) a stand-alone compact / portable machine, or b) together with the SWF114 separate wire feeder unit, which can be included with initial purchase or as an add-on later if/when required. With an output of 350A @ 60%, there's plenty of grunt to tackle production jobs with wires up to 1.2mm. Features include: Straightforward controls (synergic or manual), 4-roll geared drive system, Job save, Spool Gun ready, and more. See below for package options.
*Also known as Weldforce 350MST - read more.
The Force 350MST* offers 3-phase power with easy-to-use controls and flexible package options. The power source has it's own wire feed system to allow use as: a) a stand-alone compact / portable machine, or b) together with the SWF114 separate wire feeder unit, which can be included with initial purchase or as an add-on later if/when required. With an output of 350A @ 60%, there's plenty of grunt to tackle production jobs with wires up to 1.2mm. Features include: Straightforward controls (synergic or manual), 4-roll geared drive system, Job save, Spool Gun ready, and more. See below for package options.
*Also known as Weldforce 350MST - read more.
WC-350MST 134.42
FUNCTIONS:
- MIG (Gas / Gasless)
- Stick / MMA
- TIG (DC Lift-Arc)
KEY FEATURES:
- Industry-first 7-year warranty*

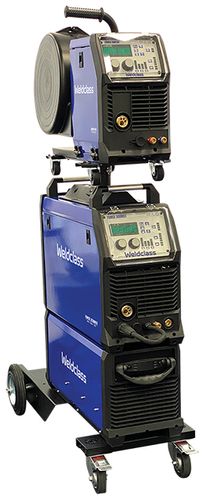

- Dual-Purpose Power Source Technology allows the 350MST to be used as a stand-alone compact / portable unit, or fitted with separate wire feeder unit
- 350A max MIG output @ 60% duty cycle
- Manual or Synergic MIG controls (enter material type & thickness and machine will set parameters automatically)
- Job Save - store custom settings for up to 20 jobs
- Geared 4-Roll Wire Drive System - for super reliable wirefeeding
- Takes 5kg (D200mm) or 15kg (D300mm)spools
- Spool Gun Ready
- MIG functions & adjustments include: Inductance, Soft Start, Burnback, Pre-Gas Time, Post-Gas Time, 2T/4T Trigger, Spot/Stitch Time
- Stick/MMA functions & adjustments include: Hot-Start %, Arc-Force %
- TIG functions & adjustments include: Trigger & Remote Amperage Control on the torch, Post-Gas Time, Slope-Up Time
- Generator Compatible - min 25kva
INCLUDES:
- MIG Torch 4m BZL 36
- Earth Lead H/Duty 6m
- Gas Regulator
- Driver Roller for 0.9/1.2mm steel/solid wire
- Power Input Lead with 3-phase 32A plug fitted

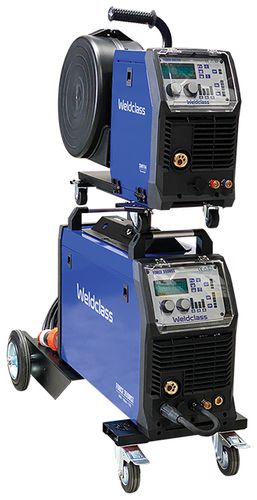

- Separate Wire Feeder Packages include SWF114 wire feeder unit with 8m interconnecting cables
OPTIONAL ACCESSORIES:

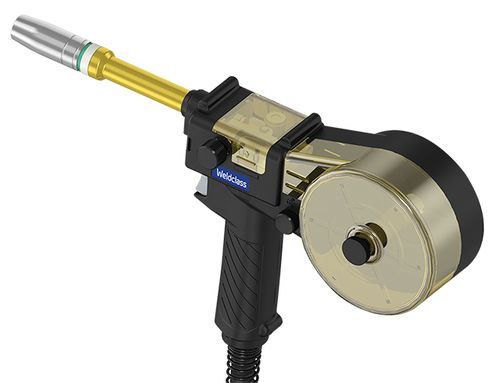

- Spool Gun BZL 25 8m (part no WC-06203)

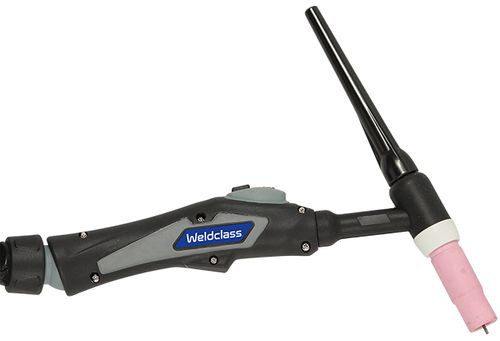

- TIG Torch #17 4m with Remote Control (part no WC-06234)
- Stick welding lead (# WC-06233)
- MIG Torch Spares (BZL 36)
- Drive Rollers
RELATED INFO & ARTICLES:
- Warranty Registration
- What is an Inverter Welder (or plasma cutter)? About Inverter technology
- What is Duty Cycle & How is it Calculated?
- What is MMA (stick) welding? About the MMA process
- MMA (Stick) Welding: What is Hot Start, Arc Force & Anti-Stick?
- What is TIG welding? About the TIG process
- TIG Welding: What is Scratch-Start, Lift-Arc and HF Ignition?
*Standard warranty 2 years, with extended 7 year warranty available if registered online after purchase, click here for details.
Downloads
Andrew - QLD
How likely would you be to recommend this product to a friend? (10 = very likely) = 9
Comments: Our welders are really happy with the machine to date.
11/11/24 14:25
NATHAN - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10 Comments:
BRILLANT OUT OF THE BOX MACHINE
27/08/24 14:23
Albert - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Very good for the hobbyist (and professional). Easy adjustments to suit wide range work. 14/07/23 15:29
Greg - NT
How likely would you be to recommend this product to a friend? (10 = very likely) = 10 Comments:
we love weld class have since i started my career 18/04/23 2:59 PM
John - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10 Comments:
This machine has had a lot of thought put into the design. Having two wire feed systems means it is very versatile which saves time and money. I can have two different wires set up ready to go at any time. With a 4WD wire feed system, stick and TIG functionality, a good duty cycle rating, a slide out toolbox drawer ... what more could you want? 11/01/23 20:59
How likely would you be to recommend this product to a friend? (10 = very likely) = 9
Comments: Our welders are really happy with the machine to date.
11/11/24 14:25
NATHAN - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10 Comments:
BRILLANT OUT OF THE BOX MACHINE
27/08/24 14:23
Albert - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Very good for the hobbyist (and professional). Easy adjustments to suit wide range work. 14/07/23 15:29
Greg - NT
How likely would you be to recommend this product to a friend? (10 = very likely) = 10 Comments:
we love weld class have since i started my career 18/04/23 2:59 PM
John - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10 Comments:
This machine has had a lot of thought put into the design. Having two wire feed systems means it is very versatile which saves time and money. I can have two different wires set up ready to go at any time. With a 4WD wire feed system, stick and TIG functionality, a good duty cycle rating, a slide out toolbox drawer ... what more could you want? 11/01/23 20:59
Related Products
-

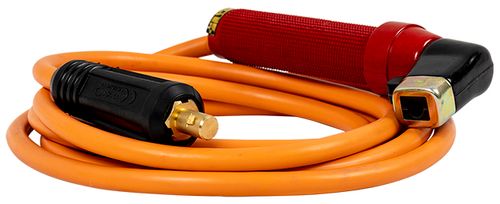

Welding lead / cable assemblies - including earth leads and electrode holder leads (work leads) to suit a range of different welders. Pre-assembled, ready to plug in and weld. Made with high-quality double-insulated cable and heavy-duty accessories, including earth clamps with solid brass jaws. Available as individual earth lead to suit all types of welders (including MIG, TIG & Stick), and individual electrode holder leads for stick welders.
-
