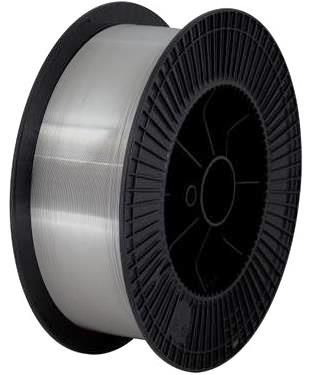

Wire - Hardfacing PLATINUM CX-2150 (Gasless)
Extreme performance hardfacing 'MIG' wire, providing a unique combination of both extreme abrasion resistance AND high impact resistance. Up to 6-7 times better wear life vs basic hardfacing wires*... thanks to special carbide additives not found in other wires.
Suitable for a very wide range of applications such as; components subject to abrasion together with high impact stress, where down-time cost is high and longer service life is critical for reducing costs, and where the exact nature of wear is not known in advance and all-round abrasion + impact protection is needed.
Typical applications include: metal-to-earth, ground-engaging equipment, crushing, dredging, mining equipment, grizzly bars, and much more.
Gasless wire for easy application. Available in 1.6mm. Requires minimum 160 amps, suitable for use with MIG welders around 200A-250A & above.
Hardfacing Selection Guide
Suitable for a very wide range of applications such as; components subject to abrasion together with high impact stress, where down-time cost is high and longer service life is critical for reducing costs, and where the exact nature of wear is not known in advance and all-round abrasion + impact protection is needed.
Typical applications include: metal-to-earth, ground-engaging equipment, crushing, dredging, mining equipment, grizzly bars, and much more.
Gasless wire for easy application. Available in 1.6mm. Requires minimum 160 amps, suitable for use with MIG welders around 200A-250A & above.
Hardfacing Selection Guide
Disclaimer:
*Abrasive wear life vs basic solid and flux-cored hardfacing wires with Cr content of <15%. Any product application information on this web page is presented as "typical" and an indicative guide only, without guarantee or warranty, and Weldclass expressly disclaims any liability incurred from any reliance thereon. No data is to be construed as an official recommendation for any welding condition or technique by Weldclass. The correct product(s), settings and techniques will vary in each application and users should conduct their own research to determine the correct product and method to use in their situation. E.&O.E.
WC-03791 43.04
KEY FEATURES:
- Extreme performance, offering extreme abrasion resistance AND high impact resistance
- Wear life of up to 6-7 times basic hardfacing wires
- Gasless flux-cored wire, easy to use with very low slag levels
- Typical hardness 61-63 HRc / 645-680 HB (max hardness achieved with 2 layers)
TYPICAL APPLICATIONS:
- Components subject to abrasion together with high impact stress
- Where down-time cost is high and longer service life is critical for reducing costs
- Where the exact nature of wear is not known in advance, and all-round abrasion + impact protection is needed
- Metal-to-earth, ground-engaging equipment, crushing, dredging, mining equipment, grizzly bars, and much more
SURFACE PREPARATION:
- VERY IMPORTANT: Surface to be hard faced must be clean and free of rust, scale, grease, moisture & other contamination.
- If existing/old hardfacing deposits are loose they should be removed. (Hammer test can confirm bond strength of existing deposits, a "ping" indicates good bond and a "clack" indicates a separation layer which must be ground off).
- Buffer Layer / Pre-Heat: CX-2150 will typically weld easily to most common surfaces WITHOUT the need for buffer layer or pre-heat, such as mild & high carbon steel, cast steel, etc.
- If applying to hard-to-weld steels, or hard-to-weld existing deposits, use buffer layer of 309 or 312 wire or electrodes. Whilst not essential, pre-heat of 150-350c may be beneficial.
- If applying to high-manganese (non-magnetic) steel, buffer of specialist high-Mn/Cr wire should be used.
OPERATING DATA:
- Polarity: DC+ (torch/wire positive)
- Typical parameters: 160-240A @ 20-26V
- VERY IMPORTANT: Amperage & voltage should be as low as possible within the recommended range. Applying excessive heat/voltage will reduce the performance and wear life of the weld deposit, due to excessive alloying with base material.
- Layers: Suitable for multi-layering (up to 3 layers), optimal performance/hardness is achieved in the 2nd layer
- Positions: Flat / downhand only (not suitable for vertical or overhead)
FINISH:
- Surface normally relief-checks (forms fine micro cracks) after welding
- Weld deposit is NOT machineable
- Weld deposit IS grind-able
SIMILAR & ALTERNATIVE PRODUCTS:
- Hardfacing Electrodes - Platinum 943 (very high abrasion & good impact)
- Hardfacing Wire - Platinum CX-1800 Gasless (high abrasion & low-medium impact)
- Hardfacing Wire - Platinum SD-980 Solid (moderate abrasion & good impact, all-positional)
