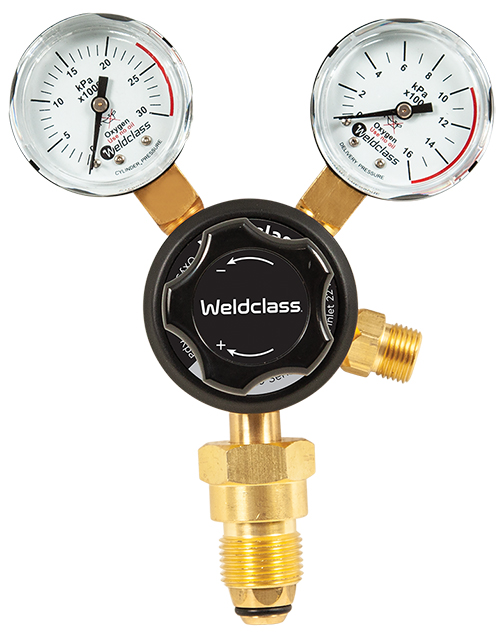

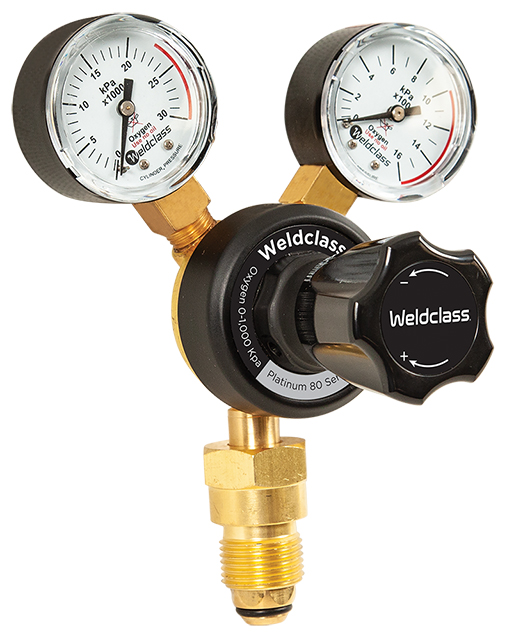

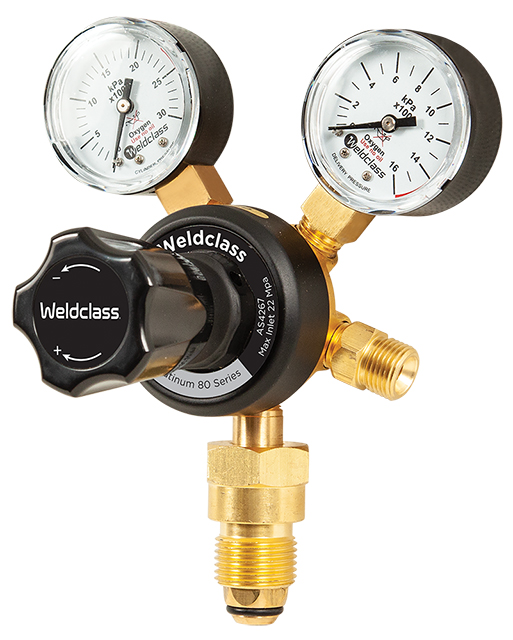

Regulators - PLATINUM Oxygen
Now available with 7-year warranty.
Oxygen gas regulator for oxy cutting, brazing, heating, etc. 0-1,000 kpa delivery pressure. PLATINUM series, no quality short-cuts, manufactured to strict quality-control standards, for performance you can depend on. Internal pressure relief valve, and encapsulated seat for safety and reliability. Designed and manufactured by a team with over 40 years experience in gas equipment engineering.
4-OXR1 104.1
KEY FEATURES
- 7-Year Warranty offer*
- Internal pressure relief safety valve*
- One-piece encapsulated seat
- Heavy-duty Platinum series, no quality shortcuts
- Proven reliability
- Complies with AS4267
- Spare parts available
SPECIFICATIONS & APPLICATION INFO:
- Suitable for oxygen gases
- Output: 0-1,000 kpa
- Inlet / cylinder connection: AS2473 Type 10
- Outlet connection: 5/8" UNF Male RH
INTERNAL PRESSURE RELIEF VALVE
- Risk of over-pressurisation of the regulator body is a safety hazard when using high pressure gas (such as oxygen or argon/CO2) and can cause rupture / explosion of the regulator and or components
- The pressure relief valve prevents over-pressurisation
- Valve is built into regulator body internal parts, protecting it from contamination, damage or tampering, to ensure reliable operation

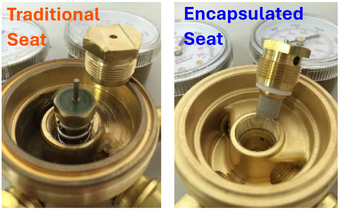

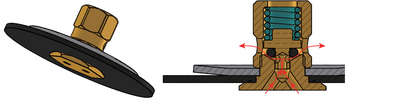

ONE-PIECE ENCAPSULATED SEAT / VALVE
- Provides better performance and reliability vs traditional seat designs
- Sintered filter ensures microscopic particles don't enter the capsule, for longer life
- Lateral (instead of direct / linear) gas flow protects diaphragm from wear & rupture
- increased valve surface area minimises flow restrictions and pressure drops
- Reduced pressure creep (tendency for regulator output pressure & flow to increase as the bottle pressure reduces)
- Smoother, more consistent and reliable gas delivery flow & pressure
- Improves weld quality and reduces troubleshooting issues caused / exacerbated by inconsistent gas delivery
COMPLIANCE & QC
- Regulator complies with AS 4267
- Pressure gauges comply with Australian standards AS 1349 & ISO 5171
- Inlet connections comply with AS 2473 & ISO 5145
- Manufactured under ISO-9001 certified quality system
- Each regulator factory tested for leak tightness & correct operation at max working pressure
- Each regulator stamped to indiciate month & year of manufacture & QC test
*Standard warranty 12 months, with extended 7 year warranty available if registered online after purchase, click here for details. Internal pressure relief valve fitted to units manufactured from June 2023 onwards.
