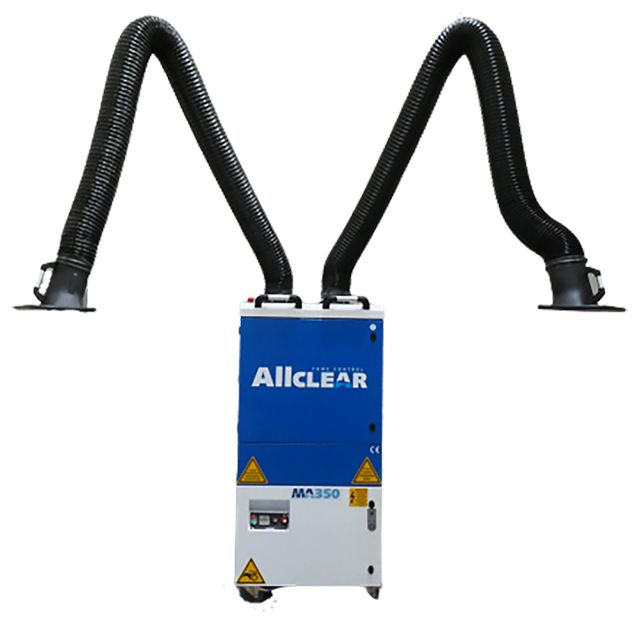

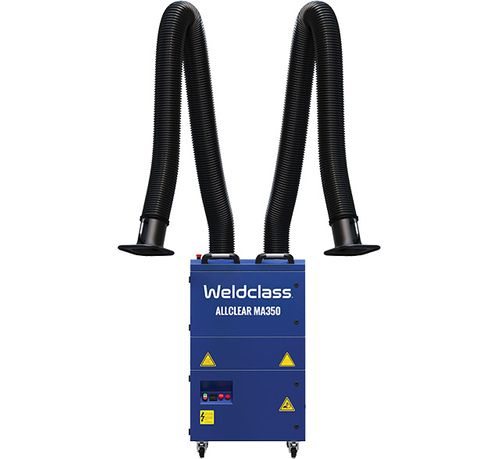

Mobile Welding Fume Extractor ALLCLEAR® MA350 STD
The ALLCLEAR® MA350 is a 415V mobile fume extraction and filtration unit for welding and grinding. With cleanable cartridge filter for extended filter life, the MA350 offers significantly lower operating costs vs units with traditional 'box filters'. A special deflector plate above the filter further extends filter life and virtually eliminates the risk of fire. Convenient access door allows for in-situ cleaning, and avoids operator exposure to collected fume dust. Equipped with two 3-metre arms, working hour counter, filter fullness indicator, malfunction warning, and a unique dust collection bin. Mounted on casters for mobility, and operates off 3-phase 415V power supply.
Ask a Question | Get a Quote
Ask a Question | Get a Quote
91350MA3 141.15
Mobile Extractors: The Pros & Cons
AT A GLANCE
- 7 Year Warranty Offer*
- For welding, grinding, cutting & gouging fumes
- Operates on 415V 3-phase power
- Twin 3m arms provide wider reach & minimise the need to move main unit
- Twin filters for increased dust/fume collection capacity
- Cleanable filter for longer filter life & reduced operating costs
- ‘In situ’ filter cleaning - access via filter cleaning door, clean with compressed air nozzle
- Special spark deflector virtually eliminates fire risk
- With: working hour counter, filter fullness indicator, malfunction warning, special dust collection bin
- Compact and mobile
APPLICATIONS
- MIG welding
- Flux-Core (FCAW) welding
- TIG welding
- Plasma Cutting
- Grinding
- Arc Gouging
- In high-fume applications (eg some flux-core wires), models with auto cleaning function such as MA300 AUTO or MA350 AUTO are recommended
FEATURES
- Cleanable cartridge filter for extended filter life & significantly lower operating costs vs traditional box filters
- Special spark deflection / impact plate shields the filter from sparks & coarse particles (redirecting them to the dust collection bin), significantly reducing the risk of burnout / fire, and further increasing filter life
- Cleanable filter provides consistent air flow rate (minimal drop in suction power) over the life of the filter

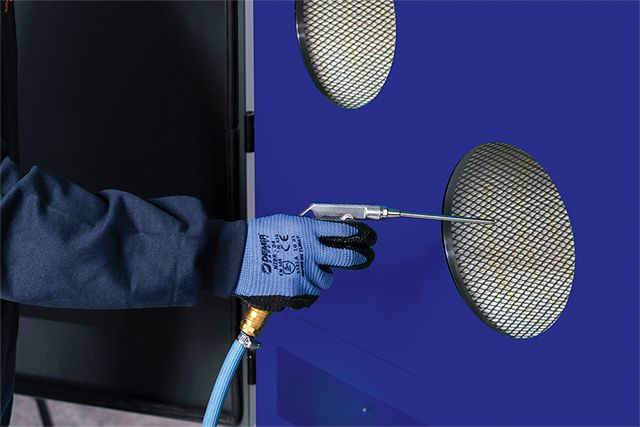

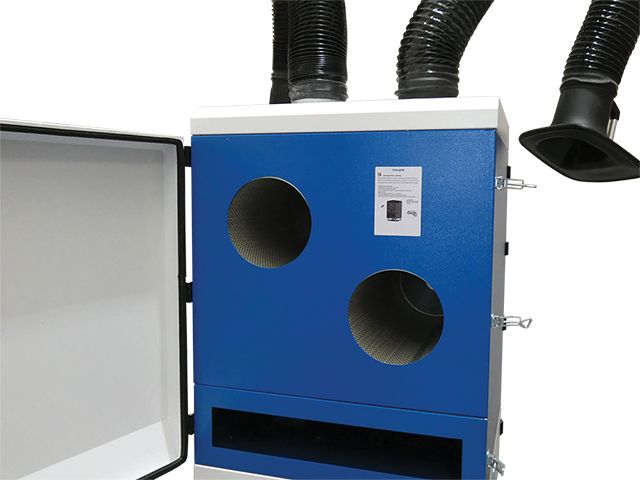

- Special filter cleaning door allows for ‘in situ’ cleaning (no need to remove filter)
- Easy and safe access to ‘clean’ side of filter = operator is not exposed to captured fume dust during cleaning

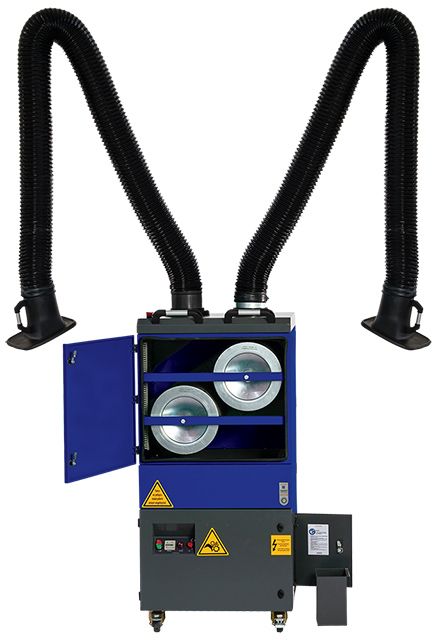

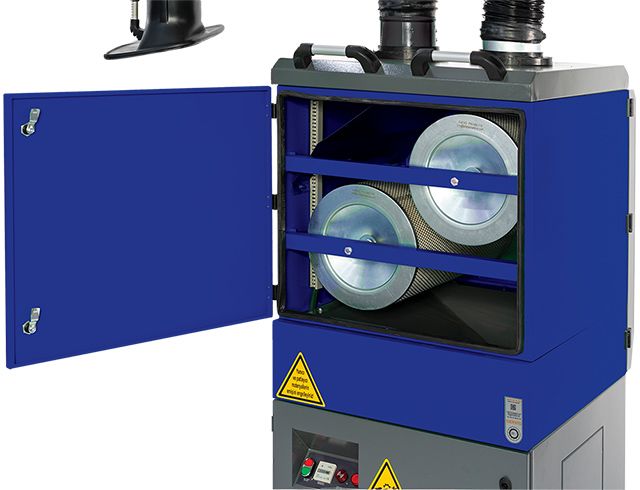

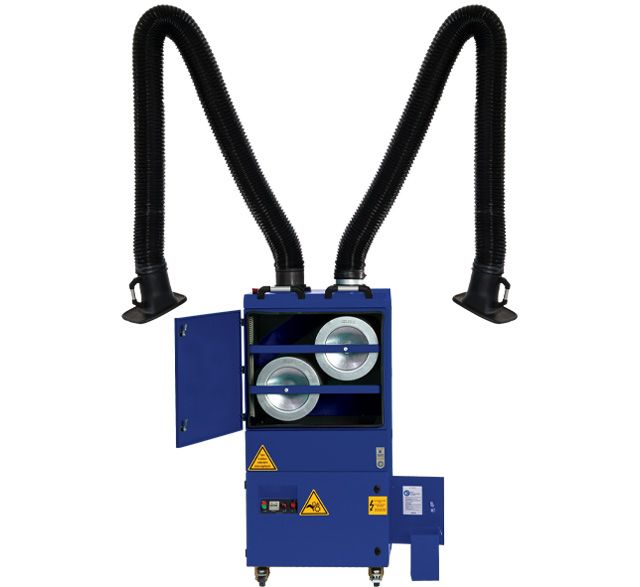

- Dual filters with large 28m² surface area & nanofiber structure provide high filtration efficiency and long life
- Pre-separator “impact plate” shields filters from coarse particles & sparks, reducing the risk of burnout and increasing filter life

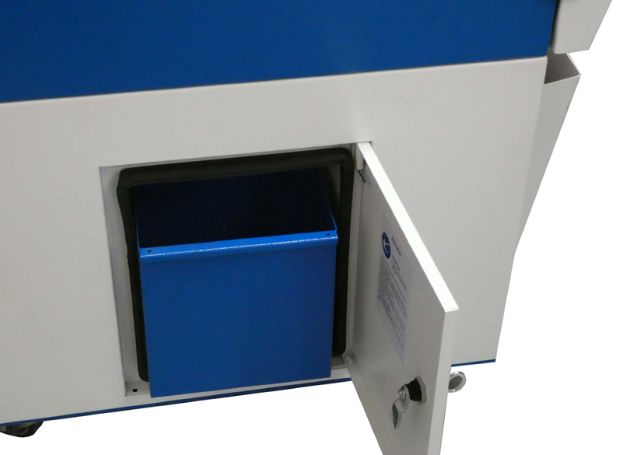

- Unique drawer/bin allows safe removal of dust (ejected from filter cleaning) with minimal disturbance, & can be accessed/used when machine is running to prevent down-time
- Exhaust airflow is directed upwards & away from the floor/ground, for minimal disturbance of dust in surrounding environment
- High extraction performance (max air flow: 3,500m³ / hour)
- Compact and mobile
- Ergonomic design with easy access to all functions & replacement filters
- Arcrobat arm joints use special materials & design to provide long-term use and prevent wear/fatigue
- Durable hose material resist wear and high temperatures
- Lightweight and durable suction hood catches particles with a large inlet
SPECIFICATIONS
- Power supply: Three phase 415V
- Dimensions (mm): L720 x W785 x H1480
- Weight: ~130kg
- Motor size: 2.2kw
- Max air flow: 3,500m³ / hour
- Air flow at suction point: 1,600m³ / hour
- Filter surface area: 28m² (2 x 14m²)
- Filter cleaning: Manual (access via filter cleaning door, clean with compressed air nozzle)
- Noise level: 74 dBA
- Sound insulation: Acoustic sponge
- Body material: Galvanised steel
- Fan: Aluminium
OPTIONAL ACCESSORES & COMMON SPARE PARTS
- Main cartridge filter standard F9 (91990116)
- Optional HEPA (high efficiency) H13 main cartridge filter (91990118)
- Optional Carbon filter for odour reduction (91990122)
*Standard warranty 1 year, with extended 7 year warranty available if registered online after purchase, click here for details.
,
