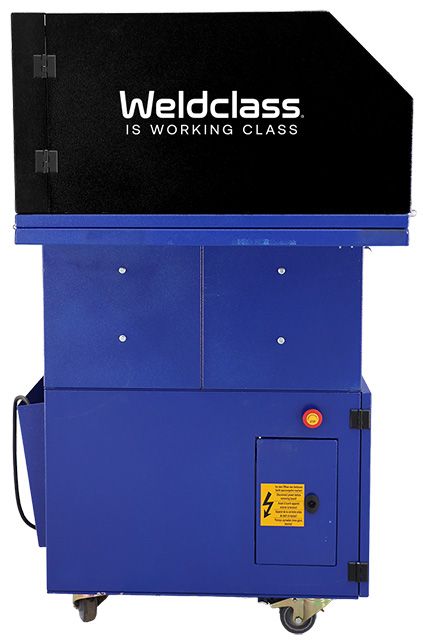

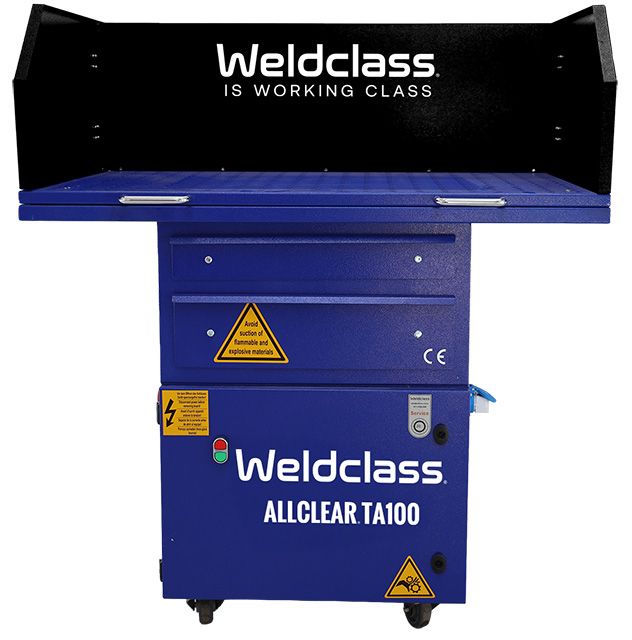

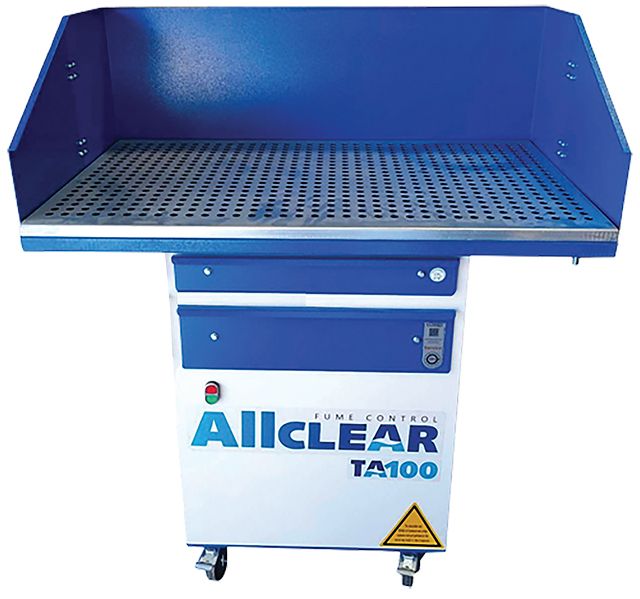

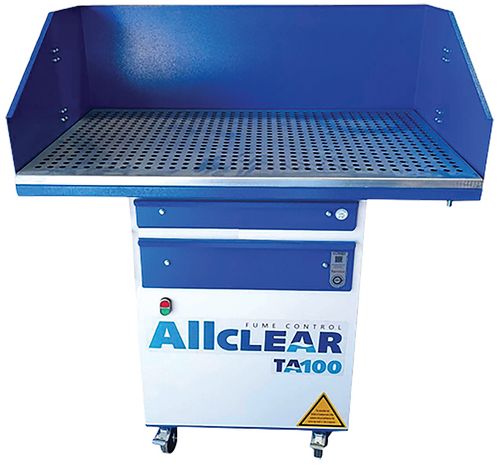

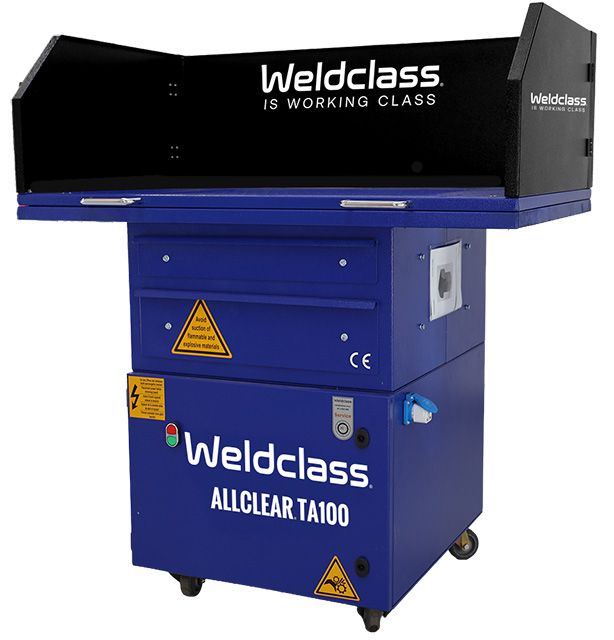

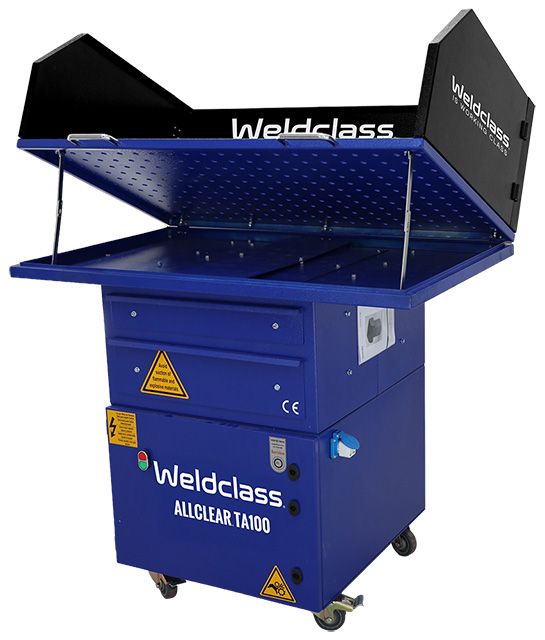

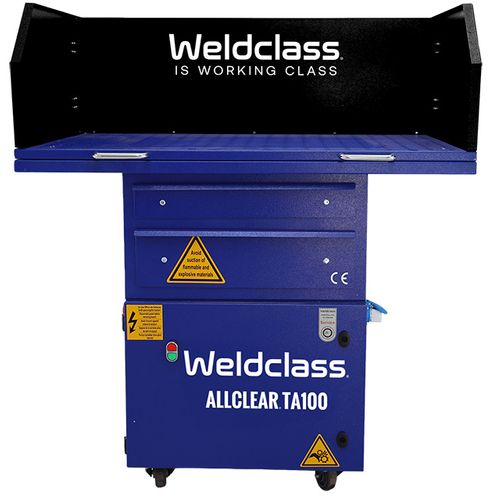

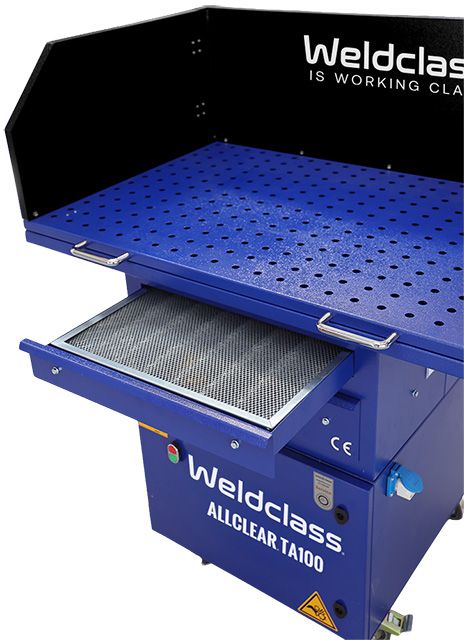

Fume Extraction Grinding & Welding Table ALLCLEAR® TA100
The ALLCLEAR® TA100 is a compact and ergonomic mobile downdraft table that is perfect for welding and light grinding. Equipped with a cassette-type main filter plus G4 prefilter and mesh spark filter, it offers ultimate ease of use. With a powerful 1kW AC motor and 240V power supply, it generates an impressive 7m per second airspeed on the working surface, effectively extracting dangerous welding and grinding fume particles to create a safe and healthy work environment. The rust-proof galvanized body and caster wheels provide excellent mobility, making it an ideal solution for any workspace. D700 x W1100 x H1255mm.
Get a Quote | Contact A Fume Specialist
Get a Quote | Contact A Fume Specialist
91100TA1 141.21
AT A GLANCE
- Down-draft table with inbuilt filter
- For welding & light grinding
- Operates on ~230V 10A single phase power
- Compact and mobile
- Ideal for education and training applications
- 7 Year Warranty Offer*
FEATURES
- Compact and mobile
- Ergonomic design with easy access to all functions & replacement filters

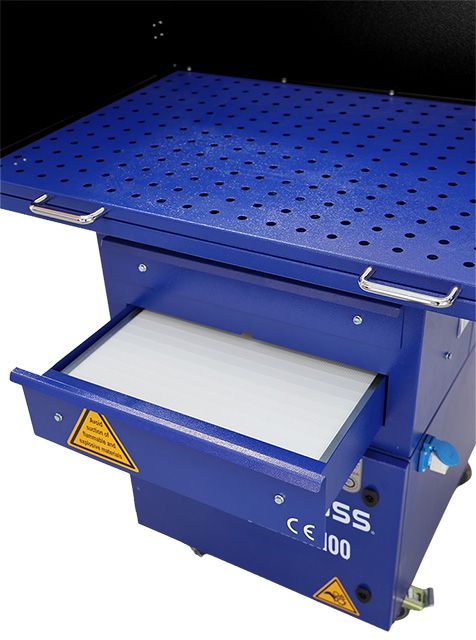

- F9 Cassette / box type main filter
- G4 prefilter
- Mesh spark filter
APPLICATIONS
- Welding
- Light / occassional grinding
- NOT suitable for for heavier grinding, or cutting (including oxy & plasma cutting/gouging) - for these applications with higher spark and dust level the ALLCLEAR TA400 table is recommended
- NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour**
SPECIFICATIONS
- Power supply: Single phase ~230V 10A
- Dimensions (mm): L700 x W1100 x H920/1255
- Weight: 130kg
- Load capacity: 500kg
- Motor size: 1kw
- Max air flow: 3,000m³ / hour
- Average air flow at surface: 1,350m³ / hour
- Air speed at surface: 7m / sec
- Noise level: 68 dBA
- Sound insulation: Acoustic sponge
- Body material: Galvanised steel
- Body: Galvanised steel
- Fan: Aluminium
OPTIONAL ACCESSORES & COMMON SPARE PARTS
- Main cassette filter F9 (91990116)
*Standard warranty 1 year, with extended 7 year warranty available if registered online after purchase, click here for details.
**Aluminium dust, including grinding dust, can be explosive when airborne, and for this reason fume extractors and downdraft tables should not be used for extraction of aluminium grinding dust (this does not apply to aluminium welding fumes, which can be safely extracted). Oil mist and gases can also cause explosion. Water vapour will damage the filter.
