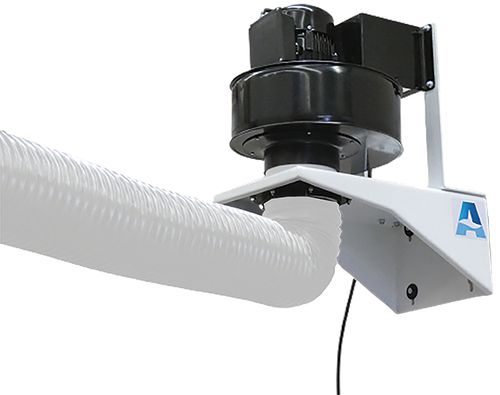

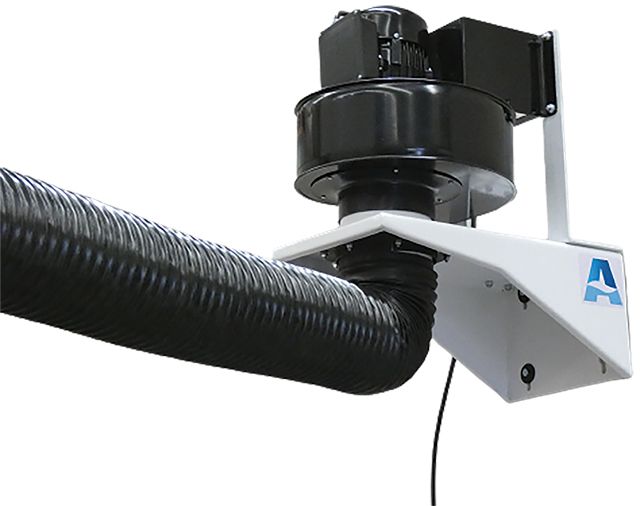

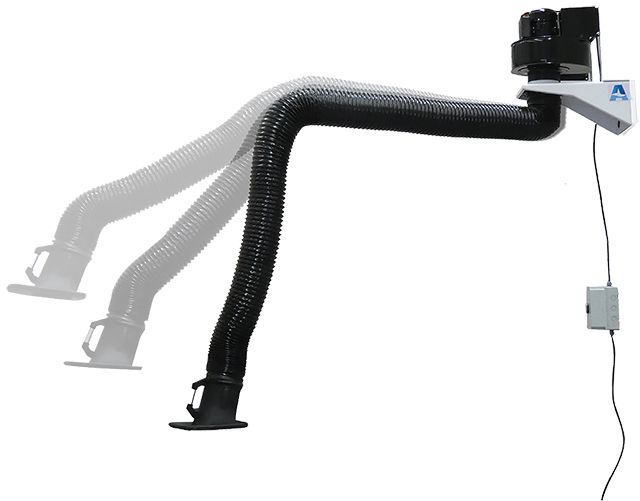

Wall-Mounted Welding Fume Extraction Fan ALLCLEAR® FA25
The ALLCLEAR® FA25 Fan is an efficient and cost-effective solution for removing dust and fumes, commonly used together with ducted systems where fumes are ducted externally and/or to large central extraction/filter units. This 240V extraction fan extracts airborne contaminants with minimal intrusion in tight workspaces. The pivoting suction arms are easy to position and stay securely in place. Choose from two arm lengths (3m and 4m) and enjoy features such as 2500m³/hr max airflow, 150mm diameter suction hose, a 160mm diameter intake nozzle hood, temperature resistance up to 120ºC, a flexible PVC suction hose with a welded steel wire coil, and a wall-mounted bracket.
Ask a Question | Get a Quote
Ask a Question | Get a Quote
91025FA1 141.25
AT A GLANCE
- For dust and fumes*
- Commonly used with ducted systems, where fumes are ducted externally and/or to large central extraction/filter units
- Operates on ~230V 10A single phase power

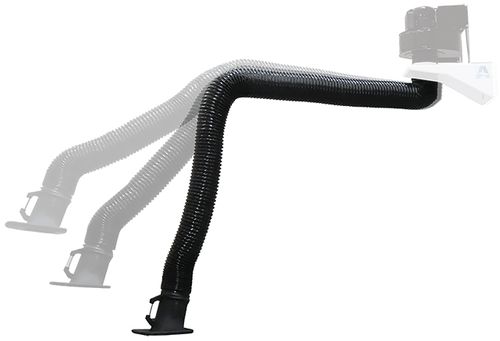

- Available with 3m or 4m suction arms (sold separately to the fan)
- Wall-mounted, for minimal intrusion in work spaces
*This unit is an extraction fan only and does not include a filter. Suitable as-is for mild / non-toxic airborne contaminants. Can be used for welding and grinding fumes, if used together with a suitable filtration system.
FEATURES

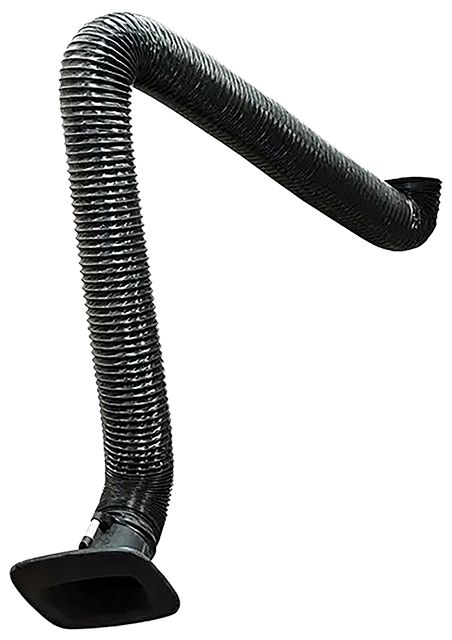

- Flexible PVC suction hose with a welded steel wire coil
- Temperature resistance up to 120ºC

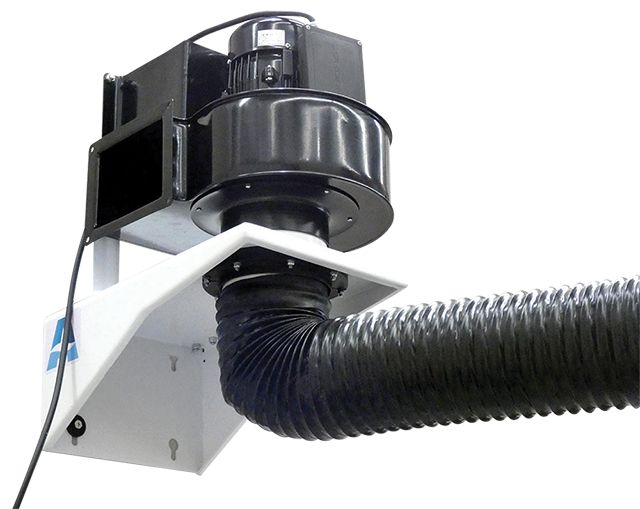

- Rectangularoutlet on fan for easy ducting (see dimensions below)

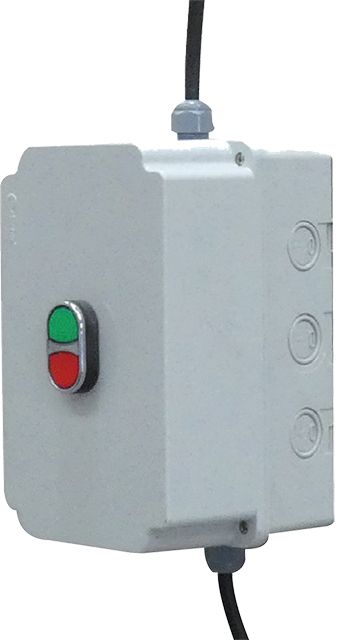

- Fan includes simple on/off control box
FAN INCLUDES
- Fan/Motor with Mounting Bracket (assembled)
- Wall anchor bolts with paper template for hole locations
- On/off switch/control box with wires and 230V 10A power plug (assembled)*
*Wall mounting requires switch box to be opened to allow fixing
SPECIFICATIONS
- Power supply: Single phase ~230V 10A
- Max air flow: 2,500m³ / hour
- Motor size: 1.1kw
- Fan/Motor Weight: 27kg
- Dimensions (mm): L438 x W449 x H410
- Fan type: Static and dynamic balanced impeller
- Suction Hose Size: 150mm diameter
- Intake Hood Size: 160mm diameter
- Fan outlet size (rectangular): Outside 220 x 170mm / Inside 163 x 125mm
Related Products
-

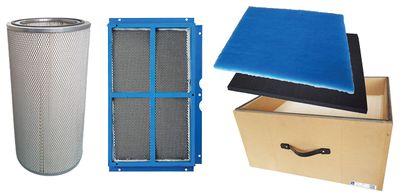

Spare parts and accessories for ALLCLEAR® Fume Control units, including replacement filters.
-
