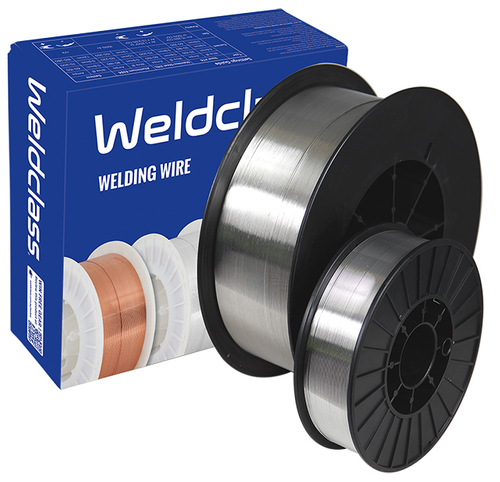

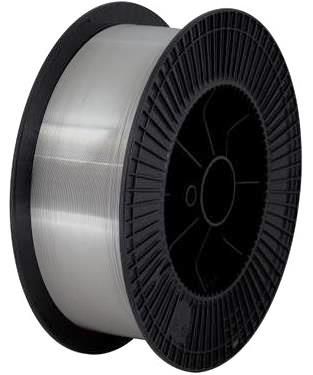

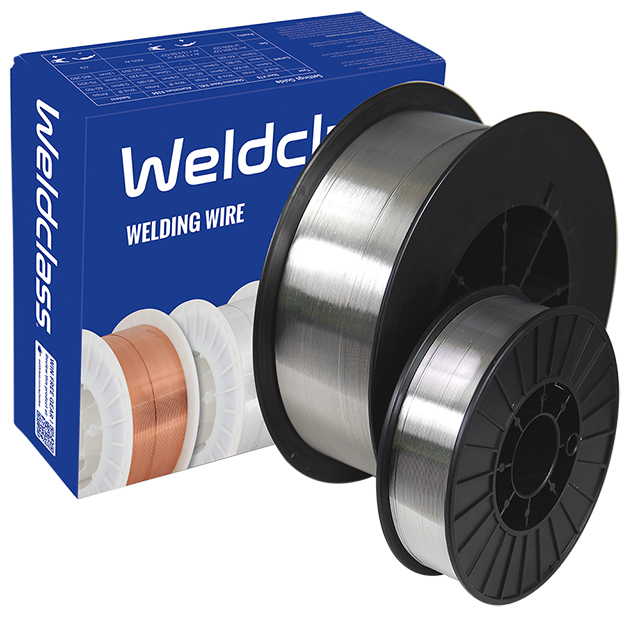

Wire - MIG Stainless-Steel PLATINUM 309Lsi
Premium 309LSi grade MIG (GMAW) wire for welding matching 309 stainless-steels, and dissimiar "300 series" stainless to mild steel. Platinum series, no quality short-cuts: Manufactured with strict quality-control, layer-wound for reliable wire feeding.
WC-03194 35.03
KEY FEATURES:
- Ductile and crack resistant
- For: Dissimilar welding of "300 series" stainless steels to mild steel, Matching 309/309L grades, Intermediate layer in butt welding of clad steel
- Higher silicon content for arc stability
APPLICATION INFO:
- Deposits 23% Cr / 13% Ni weld metal
- Used for wide range 300 series stainless-steels to mild or low alloy steels
- Welding matching 309 and 309L stainless-steels
- Surfacing / buffer welding of low alloy steels
OPERATING INFO:
- All-positional
- Polarity: DC+ (Wire/torch positive, Earth negative)
- Shielding Gas: Use with Argon + 1-3% O2, or Argon + 2-5% CO2
CLASSIFICATIONS:
- AWS ER 309LSi
- AS/NZS ISO 14343: B SS309LSi
- Ferrite Number about 10-15 FN
TYPICAL PROPERTIES OF ALL WELD METAL:
- Tensile strength: 630 MPa (N/mm²)
- Yield strength: 470 MPa (N/mm²)
- Elongation: 37%
- Composition %: C 0.02, Mn 2.4, Si 0.8, Cr 23, Ni 13, P 0.02%, S 0.001%
