TIG Torches PLATINUM TK Super-Flex
PLATINUM TK Super-Flex series torches offer exceptional flexibility and control, even in the most delicate and demanding TIG applications. Designed for use on professional TIG welding machines (such as AC/DC), where a light weight, flexible and slimline / low-profile torch is preferred.
Can be used together with a foot controller/pedal, or as a switched torch using the optional trigger kit.
Features highly flexible 1-piece cable with soft braided cover, flexi torch head, parts kit, and a range of gas fittings to suit most machines/models. Availble in #17 series and #18 water-cooled series.
Can be used together with a foot controller/pedal, or as a switched torch using the optional trigger kit.
Features highly flexible 1-piece cable with soft braided cover, flexi torch head, parts kit, and a range of gas fittings to suit most machines/models. Availble in #17 series and #18 water-cooled series.
Also Known As:
TIG Welding Gun
WC-04997 75.06

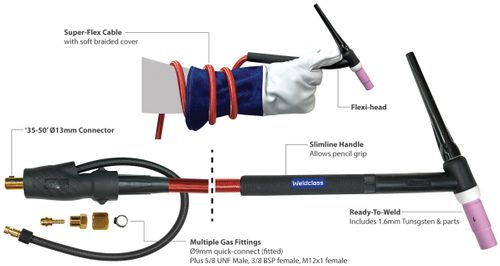

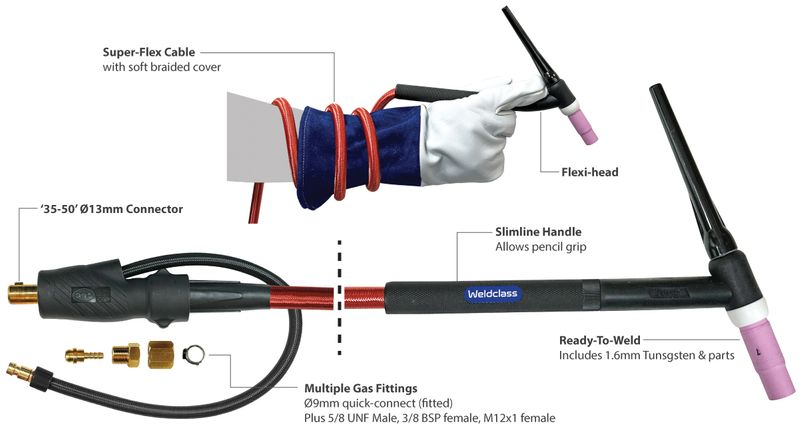

KEY FEATURES
- Available with leading 7-Year Warranty*
- Super-flex 1-piece cable, flexi torch head & slimline handle
- Universal fit: Includes range of different gas fittings to suit different machines
- Ready-to-weld, with parts kit included

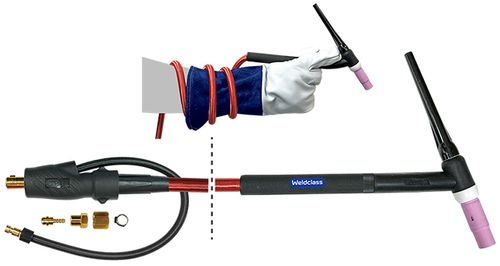

INCLUDES
- Super-Flex braided 1-piece cable (power & gas in one cable)
- Cylindrical low-profile torch handle to allow pencil-grip
- Flexible torch #17F head (without valve)
- "Ready-to-weld" parts kits with 1pc each: 57Y02 Long Back Cap, 10N23 1.6mm Collet, 10N31 1.6mm Collet Body, 10N47 Ceramic Cup, 1.6mm Rare Earth Tungsten Electrode
- Large '35-50' (Ø13mm) male connector to suit most welders 180-200A & above
- Gas fittings: Ø9mm quick-connect male plug (fitted) + additional threaded gas fittings to suit most brands/models of TIG welding machines (5/8UNF male, M12x1 female, 3/8BSP female)*
- Water hose fittings (TK18 torch only): Ø9mm quick-connect male plugs
*For fitting torch to machines that have threaded gas outlet, cut off the existing quick-connect fitting and replace with the applicable threaded fitting, using hose nipple/barb and hose clamps supplied with torch
TYPICAL APPLICATION
For use on professional TIG welding machines (typically AC/DC machines), where a light weight, flexible and slimline torch is preferred for maximum dexterity & control, and:
- Operator is using a foot pedal / foot controller. Valve, switch & other controls on the torch head are NOT required, as all controls/adjustments are made via the foot pedal.

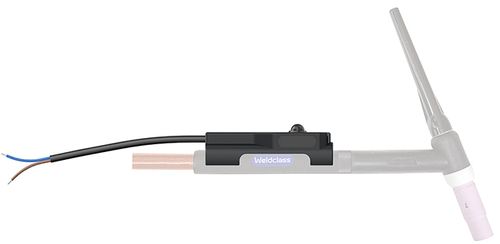

- OR, optional trigger kit is fitted to allow on/off control on the torch, with all other controls via either machine control panel, or with a foot pedal.
OTHER SPECIFICATIONS
- TK17 series: 150 amp max capacity: suitable for use with tungsten electrodes up to 2.4mm, and for welding materials up to approx' 3mm thickness

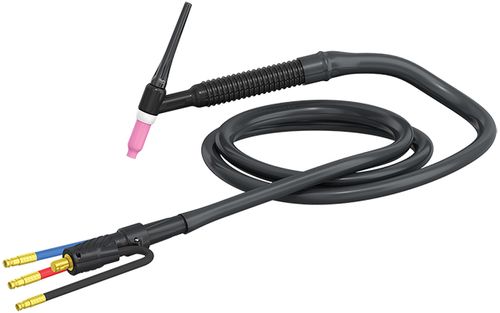

- TK18 water-cooled series: 350 amp max capacity
- Suits all Weldclass AC/DC TIG machines & most other brands and models of professional and AC/DC TIG welders
- Not recommended for use with 'basic' TIG welders that do not have integrated/internal TIG gas line (for this application, use Weldclass 17FV/26FV series torches, which have valved head and extended gas hose with 5/8" female fitting for direct connection to gas bottle/regulator)
*Standard warranty 3 months, with extended 7 year warranty available if registered online after purchase, click here for details.
