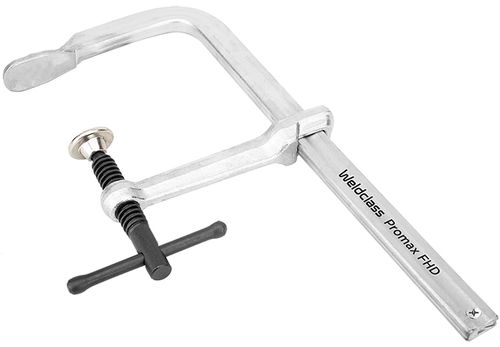

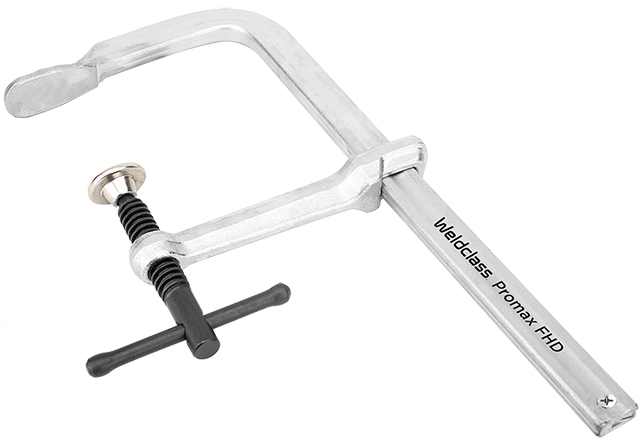

F-Clamps PROMAX FHD General Purpose

Now available with 7-year warranty, Promax FHD series F-Clamps are designed and manufactured to the high standard that Aussie welders expect. Made from nickel-chrome-plated, heat-treated steel for a corrosion resistant high strength clamp. Oxide-coated spindle for extra weld-spatter resistance. Includes swivel pad and threaded stopper bolt to allow arm removal if required to clamp in tight spaces or over larger objects.

Where to buy

Image Image Part No. Description Retail Incl. GST Where to Buy Enquiry Qty
F-Clamp PROMAX FHD 100x80mm GP 7yr Warranty Weldclass
WC-01870

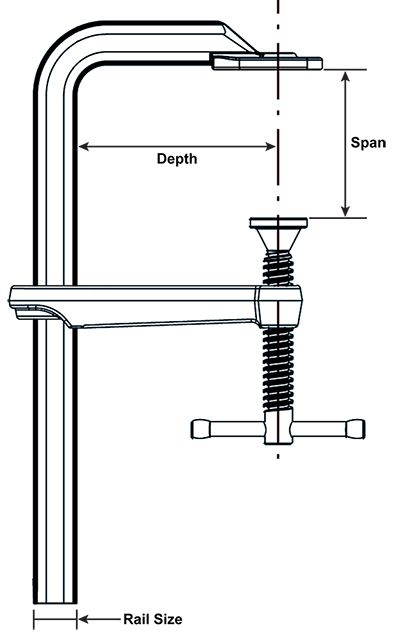

100mm Span x 80mm Depth (16x8mm Rail)
Retail Incl. GST: $45.00
F-Clamp PROMAX FHD 100x80mm GP 7yr Warranty Weldclass
WC-01870
100mm Span x 80mm Depth (16x8mm Rail)
WC-01870
$45.00
F-Clamp PROMAX FHD 200x80mm GP 7yr Warranty Weldclass
WC-01871
200mm Span x 80mm Depth (16x8mm Rail)
Retail Incl. GST: $55.00
F-Clamp PROMAX FHD 200x80mm GP 7yr Warranty Weldclass
WC-01871
200mm Span x 80mm Depth (16x8mm Rail)
WC-01871
$55.00
F-Clamp PROMAX FHD 300x120mm GP 7yr Warranty Weldclass
WC-01872
300mm Span x 120mm Depth (25x12mm Rail)
Retail Incl. GST: $99.00
F-Clamp PROMAX FHD 300x120mm GP 7yr Warranty Weldclass
WC-01872
300mm Span x 120mm Depth (25x12mm Rail)
WC-01872
$99.00
F-Clamp PROMAX FHD 400x180mm GP 7yr Warranty Weldclass
WC-01873
400mm Span x 180mm Depth (25x12mm Rail)
Retail Incl. GST: $129.00
F-Clamp PROMAX FHD 400x180mm GP 7yr Warranty Weldclass
WC-01873
400mm Span x 180mm Depth (25x12mm Rail)
WC-01873
$129.00
F-Clamp PROMAX FHD 500x120mm GP 7yr Warranty Weldclass
WC-01874
500mm Span x 120mm Depth (25x12mm Rail)
Retail Incl. GST: $149.00
F-Clamp PROMAX FHD 500x120mm GP 7yr Warranty Weldclass
WC-01874
500mm Span x 120mm Depth (25x12mm Rail)
WC-01874
$149.00
View Enquiry List
Ask a Question
WC-01872 158.51

KEY FEATURES:

  • 7-Year Warranty*
  • Nickel-Chrome Plated, Heat-Treated Steel: For a corrosion-resistant, high strength clamp
  • Oxide-Coated Spindle: For extra weld spatter resistance
  • Threaded Stopper: Allows arm removal for clamping in confined spaces or over larger objects.

*Standard warranty 3 months, with extended 7 year warranty available if registered online after purchase, click here for details.
