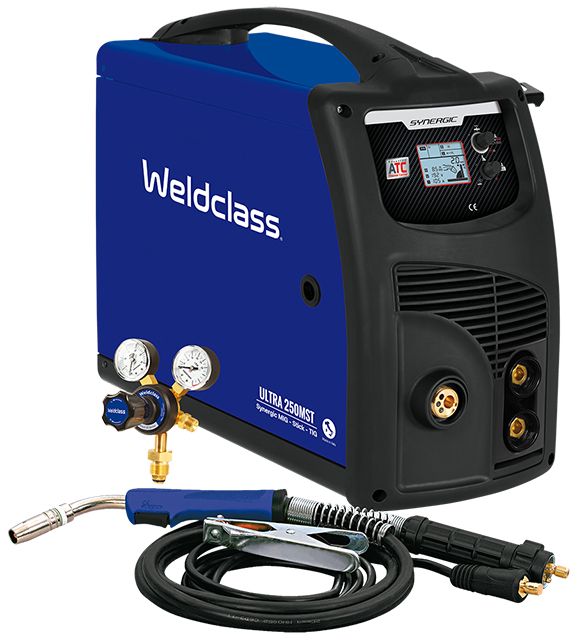

MIG / Stick / TIG Welder - ULTRA 250MST*
Now available with 10-year warranty
Everything you'd expect from a European made multi-function welder... and then some, ULTRA 250MST* offers; Choice of 4 welding modes; manual or synergic MIG (select wire type & material thickness & the machine takes care of the settings), Stick, or lift-arc TIG. Plus interactive LCD controls, VRD safety feature & generator compatability - all in a compact 19kg package.
Smooth arc, very easy to set and control. MIG welds up to 12mm steel. When MIG welding thin materials, ATC (Advanced Thermal Control) technology offers outstanding results on steel, stainless & aluminium down to 0.5mm, including welding of car body panels with bronze wires.
Comes with; 4m heavy-duty 250A Euro-fit MIG torch, gas regulator, drive rollers for solid & gasless wires, earth lead & 15A plug fitted.
*Also known as Weldforce 250MST - read more.
Everything you'd expect from a European made multi-function welder... and then some, ULTRA 250MST* offers; Choice of 4 welding modes; manual or synergic MIG (select wire type & material thickness & the machine takes care of the settings), Stick, or lift-arc TIG. Plus interactive LCD controls, VRD safety feature & generator compatability - all in a compact 19kg package.
Smooth arc, very easy to set and control. MIG welds up to 12mm steel. When MIG welding thin materials, ATC (Advanced Thermal Control) technology offers outstanding results on steel, stainless & aluminium down to 0.5mm, including welding of car body panels with bronze wires.
Comes with; 4m heavy-duty 250A Euro-fit MIG torch, gas regulator, drive rollers for solid & gasless wires, earth lead & 15A plug fitted.
*Also known as Weldforce 250MST - read more.
WC-250MST 134.29
View 250MST Support & FAQ Articles
FUNCTIONS:
- Manual MIG (Gas / Gasless) - Voltage and wire speed adjusted manually
- Synergic MIG (Gas / Gasless) - Set wire type/size & material thickness and machine will set parameters automatically
- Stick / MMA
- TIG (Lift-Arc)
AT A GLANCE:
- Made in Europe
- 250A max MIG output
- Welds up to 12mm Mild Steel (max MIG capacity)
- Fitted with 15A 240V plug*
KEY FEATURES:
- World-first 10-year warranty**
- Made in Italy to Weldclass specifications, in one of Europe's largest & most experienced welding machine manufacturing plants
- 30-day Money Back Guarantee***
- LCD display - Interactive & easy to use
- Manual or Synergic MIG controls (enter wire type/size & material thickness and machine will set parameters automatically)
- 26+ MIG Programs - for welding with different wires & materials
- Very smooth arc
- ATC (Advanced Thermal Control) technology for brilliant results when MIG welding thin materials down to 0.5mm
- Compact and portable, weighs 19kg
- Takes 5kg (D200mm) or 15kg (D300mm) spools
- Large "35-50" cable connections
- Generator Compatible - min 13kva, ideal 15+kva
- VRD function for safe & compliant Stick/MMA welding
- MIG Adjustments include: Inductance, Soft Start, Burnback, Post-Gas Time, 2T/4T Trigger, Spot Weld Time
- Stick/MMA Adjustments include: Hot-Start %, Arc-Force %
APPLICATION & CAPABILITY INFO:
- MIG welding <250A with solid mild steel (0.6-1.2mm), gasless flux-cored (0.8-1.2mm), stainless-steel (0.8-1.2mm), aluminium (0.8-1.0mm), & bronze/brazing (0.8-1.0mm) wires
- Due to ATC technology, offers outstanding control & results when MIG welding thin materials down to 0.5mm (incl steel & aluminium). Especially suitable for welding car body panels with bronze wires.
- Stick/MMA welding <180A with most types of common electrodes (2.0-4.0mm), including steel, stainless-steel, hardfacing & more
- TIG welding <180A (DC lift-arc) of steel, stainless, copper & chrome molly up to 4-5mm max thickness (NOT suitable for TIG welding of aluminium - this requires AC/DC TIG capability, such as the Weldforce 202T)
INCLUDES:
- MIG Torch H/Duty BZL 25 4m (made in Europe)
- Gas Regulator (made in Europe)
- Earth Lead 4m
- Driver Roller for 0.6/0.8/0.9mm steel/solid wires
- Driver Roller for 0.8/0.9/1.2mm gasless wires
OPTIONAL ACCESSORIES:

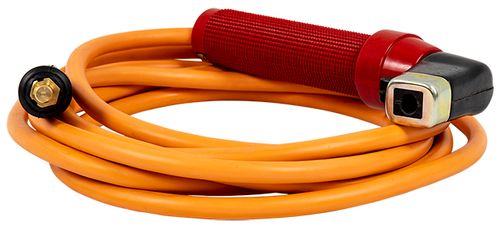

- Stick welding lead (# WC-06233)

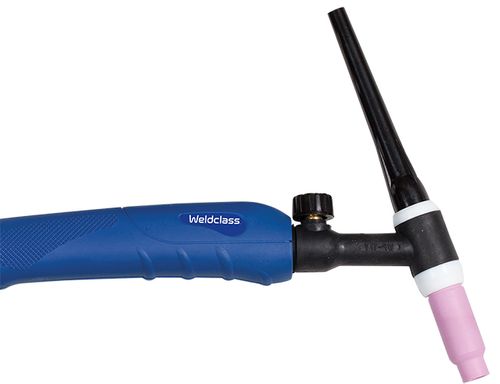

- TIG Torch 17FV (# WC-00992)

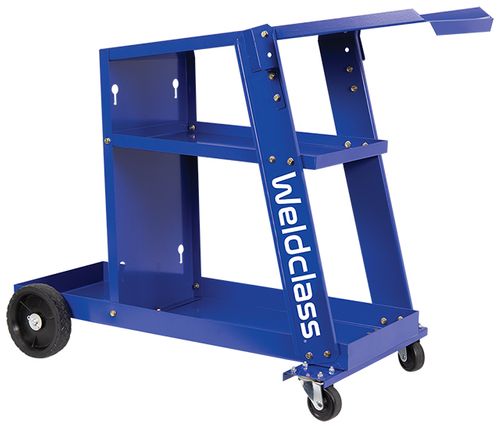

- T100 Welding Trolley (# WC-06235)
- MIG Torch Spares (BZL 25)
- Drive Rollers
RELATED INFO & ARTICLES:
,,,
Michael - QLD
How likely would you be to recommend this product to a friend? (10 = very likely) = 10 Comments:
Fantastic machine, extremely happy with the product
11/11/24 14:54
Brenton - QLD
How likely would you be to recommend this product to a friend? (10 = very likely) = 10 Comments:
The synergic program works great with both gas and gas less wire. Runs a smooth bead, helps make you a better welder. Great features for the price and Italian made. Was leaning towards a Kempii but after researching these and the fact it had higher amperage and could also run stick on the machine which the Kempii can’t I decided to get one of these instead and glad I did.
02/04/24 12:41
Ben - VIC
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Looks great, works great and simple controls. Very happy.
24/06/23 20:11
Nick - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Very impressed.
04/07/23 17:22
Paul - WA
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Absolute beast of a welder! With the ATC feature welds thin material better than any other MIG I have used and still has plenty of grunt when needed on the thicker stuff. Welds smooth as silk, Italian made, quality bit of kit!
13/05/23 11:08 PM
Kenneth - QLD
How likely would you be to recommend this product to a friend? (10 = very likely) = 9
Comments: Simple and easy to use More efficient and more compact, lighter and seemingly better built than the machine it is replacing.
04/10/22 1:38 PM
Terry - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Works great
12/01/22 5:37 AM
Darryl - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Amazing
13/09/21 1:23 AM
Tim - VIC
Odin - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Great machine, easy to set up and use
16/08/21 9:32 PM
Harry - WA
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Still in the learning Phase
23/06/21 1:47 PM
Andrew - QLD
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Works as expected. Happy with the quality
16/06/21 4:10 PM
A REVIEW FROM OUR TECHNICAL TEAM:
What are the stand-out features of this machine? Very smooth arc / user appeal, with straight-forward and easy-to-use controls.
Who would benefit most from this machine? Operators looking for a no-fuss "pick it up & start welding" unit for either field/site work or light-medium fabrication/production.
Any not-so-obvious features we should know about? Bonus MIG torch holder bracket (screws onto side of machine) is simple but very handy. Also, ATC technology feature really does make MIG welding of thin materials very easy.
Limitations to be aware of? Not spool-gun compatible, if spool gun is required, we recommend 255MST model. Not suitable for TIG welding of aluminium (MIG is fine) - this requires AC/DC TIG capability, such as the Weldforce 202T.
Other comments? Compact, lighter than many other machines in it's class, so very portable for a 250A machine. Arguably the most affordable European-made 250A multi-function MIG readily available in Australia, with 4-year warranty.
