Electrodes - PLATINUM 16XT Low Hydrogen
Hydrogen controlled ("low hydrogen") E7016 series stick welding electrodes with a special Twin Flux Coating for superior arc stability - in Foil-Sealed 2KG Vacuum Packs. Commonly used for mild or high strength steel, where the joint requires higher strength than regular "GP" electrodes, such as highly restrained joints or components subject to higher load stress. Also used as a buffer layer prior to hard facing. 16XT welding rods are All-Positional (except for vertical down), easy striking & smooth running, with low spatter & easy slag removal. Available in 2.5mm, 3.2mm & 4.0mm. AWS A5.1 E7016 H8 & AS/NZS 4855: B E4916 A U H10 classifications.
Stick Electrode Selection Chart
Stick Electrode Selection Chart
Disclaimer:
Any product application information on this web page is presented as "typical" and an indicative guide only, without guarantee or warranty, and Weldclass expressly disclaims any liability incurred from any reliance thereon. No data is to be construed as an official recommendation for any welding condition or technique by Weldclass. The correct product(s), settings and techniques will vary in each application and users should conduct their own research to determine the correct product and method to use in their situation. E.&O.E.
WC-03974 24.11
KEY FEATURES:
- User Friendly: Very Smooth & Stable Arc, Easy Striking, Low Spatter, Easy Slag Removal
- Hydrogen controlled, for welding mild & high-strength (carbon-manganese) steels up to 510MPa
- All-Positional (except for vertical down) & excellent weld appearance
- Twin-coated

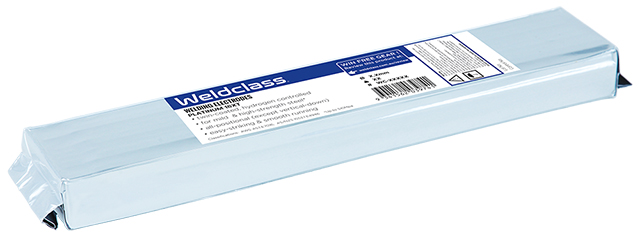

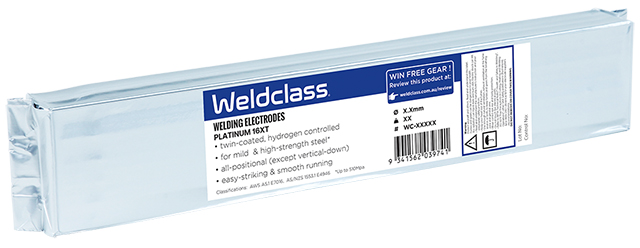

2KG VACUUM FOIL SEALED PACKS - REDUCES WASTE & MOISTURE EXPOSURE !
- Vacuum foil sealed packs keeps moisture out, right up to the point of use
- Smaller pack size reduces waste & minimises exposure to atmospheric moisture
WHY IS IT IMPORTANT TO AVOID MOISTURE ?
- Air contains moisture (humidity) and any electrode exposed to air will absorb moisture
- This increases hydrogen levels in the electrode (water 'H2O' contains hydrogen 'H')
- Increased hydrogen compromises the strength & mechanical properties of the weld
- Moisture can also negatively affect the arc characteristics of the electrode
APPLICATION INFO:
- Mining maintenance & fabrication
- Structural steel & site welding
- Rural maintenance
- Pipe construction
- Boilers & pressure vessels
- Build up or buffer layer prior to hard facing
- Single sided weld joints
- Suitable for all DC or AC welding machines
CLASSIFICATIONS:
- AWS A5.1 E7016 H8
- AS/NZS 1553.1 (old) E4946
- AS/NZS 4855: (new) B E4916 A U H10
- EN ISO 2560-A: E 38 2B H10
TYPICAL MECHANICAL PROPERTIES:
- Yield Strength: 470 MPa
- Tensile Strength: 540 MPa
- Elongation: 26%
- Impact Strength (CVN): 70J @ -20c / 50J @ -30c
FAQs:
Q: Does the vacuum foil seal avoid the need for pre-drying electrodes in an oven?
A: This depends on the application. At the point of opening a sealed pack, 16XT electrodes will almost certainly contain less moisture than electrodes that are not vacuum sealed - however electrodes ovens should still be used in critical situations or when specified in the weld procedure.
Q: How many rods per pack/KG ?
2.6mm = approx. 50 rods per KG / 100 rods per 2kg pkt
3.2mm = approx. 33 rods per KG / 66 rods per 2kg pkt
