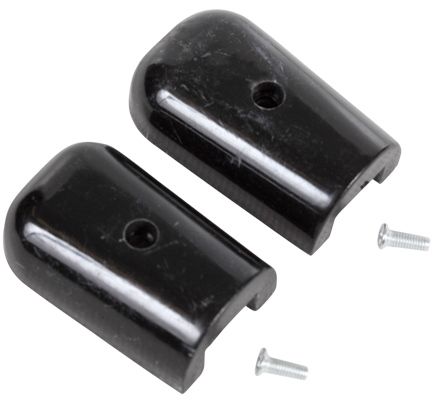

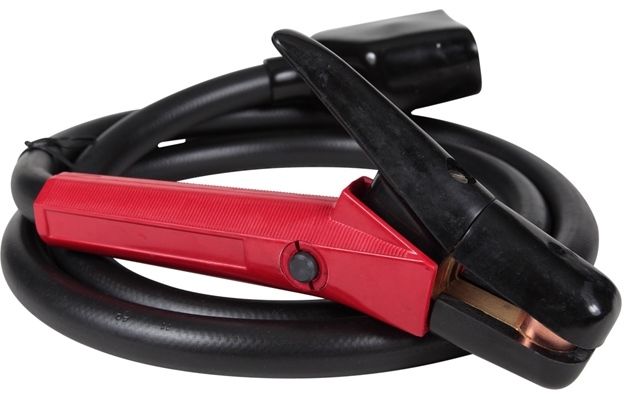

Promax K4 Gouging Torch & Spares
Promax K4 series air arc gouging torch / handpiece and spares. Robust & durable design. Now available with 7-year warranty
Also Known As:
Gouging Handpiece / Gouger Torch
6-K4GT 163.02
KEY FEATURES:
- 7-Year Warranty Offer*
- Robust, dependable design
SPECIFICATIONS:
- Max Capacity: 800A
- Cable size: 50mm2
- Cable length: 2.1m (7 ft)
- Compressed Air Inlet Connection: 5/8" UNF female thread with nut & 10mm hose tail fitted
- Power Connection: Lug / eyelet
APPLICATION INFO:
- Highly efficient metal removal, defect & crack repairs, weld removal, edge preparation, etc
- Use with gouging carbon rods + DC power source + compressed air
- Use with 5mm - 13mm gouging carbons
- Requires DC Power Source with minimum 300 Amps output
HOW IT WORKS;
- Air arc gouging process is similar to arc/stick welding, in some respects. The gouging torch/handpiece holds a gouging carbon rod, like a stick welding electrode holder.
- The carbon rod creates an arc when in contact with the metal workpiece and is consumed during gouging.
- The torch is connected to a welding machine / power source and to compressed air supply.
- When the air valve on handpiece is opened, this forces air down through a copper jaw/nozzle, and down one side of the carbon rod.
- The operator drags the carbon rod across the job, this creates molten metal in the "arc zone" which is then pushed away by the air jet.
- Gouging carbons are available in different sizes, the choice of size will depend on the capacity of the welder / power source and/or the volume/thickness of metal to be removed.
TYPICAL SET UP:
Following is a commonly-used configuration. Note this can vary depending on the welder/power source and user preferences.
Power Cable/ Connections:
- Short length of welding cable with cable lug on one end and male cable joiner/connector on the other.
- This short cable is bolted to terminal on gouging torch cable, other end is connected/joined to a longer cable.
- Longer cable is connected back to the welding machine / power source.
- Cable size will depend on: amperage capacity required, welding or power source capacity, and/or gouging carbon rod size used. As minimum amps required for gouging are around 300A, cable size used is typically at least 35mm2 or 50mm2.
Air Hose / Connections:
- Short length of 10mm ID air hose, one end crimped to air fitting/nipple on gouging torch cable terminal & other end fitted with male air fitting (eg nitto style, or user preference).
- Short air hose is then connected to longer air supply hose from air compressor.
*Standard warranty 3 months, with extended 7 year warranty available if registered online after purchase, click here for details.
Related Products
-
Gouging Carbon Electrodes for air-arc gouging. Standard round DC series. For gouging and cutting of most steels. Operates on DC welding power source and requires air arc gouging torch with compressed air supply.
