Universal Level (Magnetic) - Contour Curv-O-Mark

Multi-purpose tool for assisting in a range of pipefitting tasks, including aligning / two-holing flanges, setting angles, etc. Includes adjustable protractor dial-level, flange pins & magnetic base. Click on 'Video' to view a demonstration.

Where to buy

Image Image Part No. Description Retail Incl. GST Where to Buy Enquiry Qty

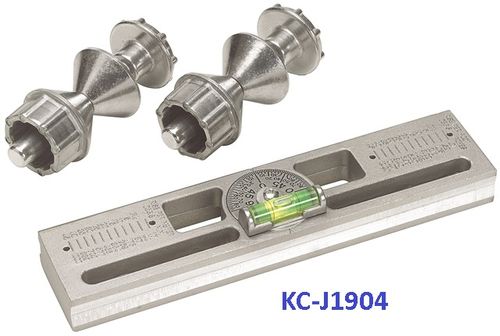

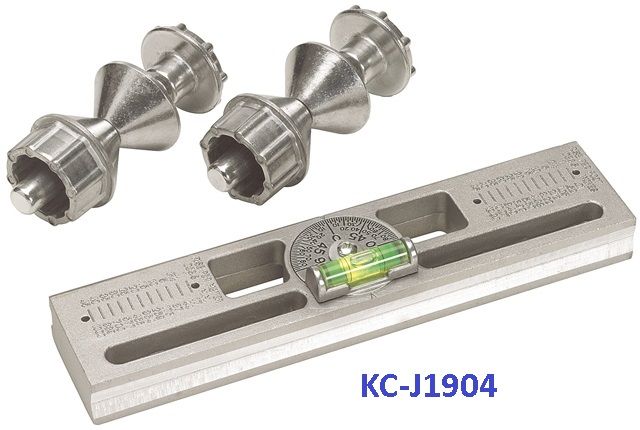

Contour Level - Universal With Flange Pins #33 Jackson Curv-O-Mark
KC-J1904
Universal Level No.33 (ref. 0721-0030)
Retail Incl. GST: $559.00
Contour Level - Universal With Flange Pins #33 Jackson Curv-O-Mark
KC-J1904
Universal Level No.33 (ref. 0721-0030)
KC-J1904
$559.00
View Enquiry List
Ask a Question
Also Known As:
Jackson Contour Curv-O-Mark / Flange Aligner / 14796 / CURV0033 / T109 / 0721-0030 / Australia
KC-J1904 160.07

 WHY CHOOSE JACKSON CONTOUR UNIVERSAL LEVEL ?

  • Valuable Multi-purpose tool for assisting in a range of pipefitting tasks
  • Adjustable 360DG protractor-dial level allows use in any position
  • Magnetic

 APPLICATION INFO:

Suitable applications include:

  • Aligning / Two-holing flanges
  • Setting a predetermined pitch of a string of pipe
  • Setting the angle of laterals to a precise degree
  • Trueing vertical runs

 WHAT ELSE ?

  • For aligning (two-holing) pipe flanges, the Level comes with two-threaded, self-aligning flange pins (conical spacer nut and bolts). These are designed to fit any size bolt holes spaced between 57-203mm (2-1/4 to 8 in.) centres, with bolt hole size from 15-44mm ID.
  • The Level has two cast-in 11kg (25lb) magnets (exerting a 22kg/50lb pull) to securely hold the unit in place on any steel surface, including the underside of a pipe or beam
  • Both faces have deep, cast-in grooves that make the Level self-centering on the contour of the pipe.
  • Cast in magnets do not interfere with the use of the Level on non-magnetic materials, such as aluminium, copper, lumber, stone or other materials requiring levelling
  • A cast-in table indicates rise per foot in both inches and meters.
  • Two-holing is simplified with the Universal Level. Self-aligning spacer bolt units are attached in the two adjacent bolt holes at the top or bottom of the flange. With the DSL dial set at 0 degrees, the flange is rotated until the bubble is centered. If adjacent top or bottom holes cannot be used, two-holing can be achieved using side bolt holes. In this instance, the DSL dial is set at 90 degrees and the flange is rotated until bubble is centered. Bolt holes that are offset can be matched by setting the DSL at the desired offset angle prior to rotating the flange.

WELDCLASS is the official Australian distributor for Jackson Contour Curv-O-Mark products.
