Earth Clamps - Heavy Duty Direct Fit Style

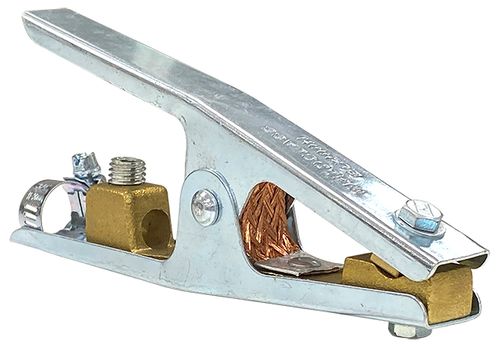

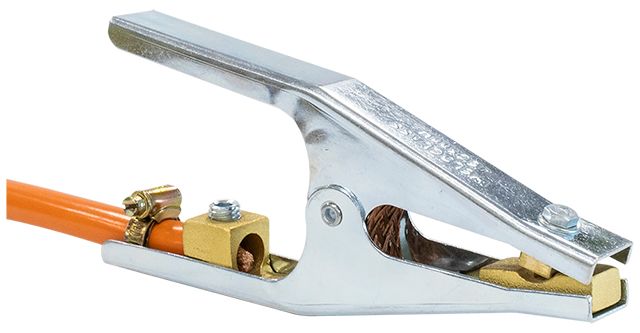

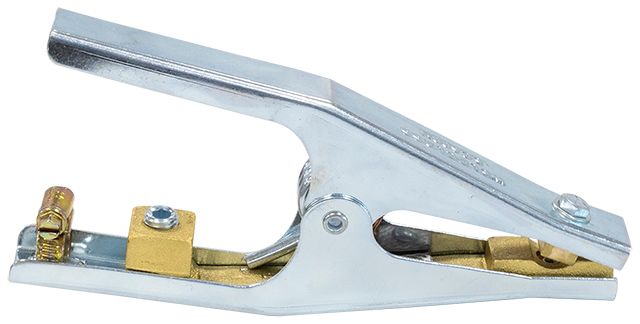

Weldclass PLATINUM series direct fit earth clamps are designed for very easy fitting and long life. No cable lug required, just wire the cable directly to the clamp. Robust heavy-duty build for extended service life. One-piece, solid brass cable terminal & jaw assembly for direct current flow from cable to the workpiece, minimising current leakage and issues caused by poor earthing. Commonly used on welders from 150 to 600 amps.
Also Known As:
Alligator Earth Ground Clamp for Welding
P6-EC500H 145.04
KEY FEATURES?

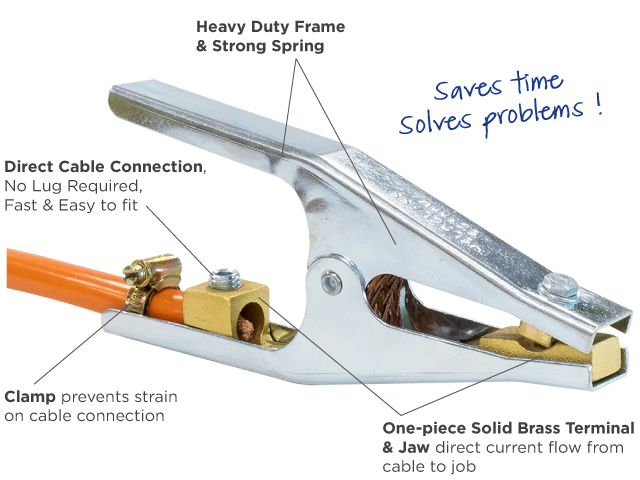

- Very fast & easy to Fit: No lug required, cable fits directly to clamp using hex-key supplied with the clamp
- Heavy duty design with solid brass jaws for long service life

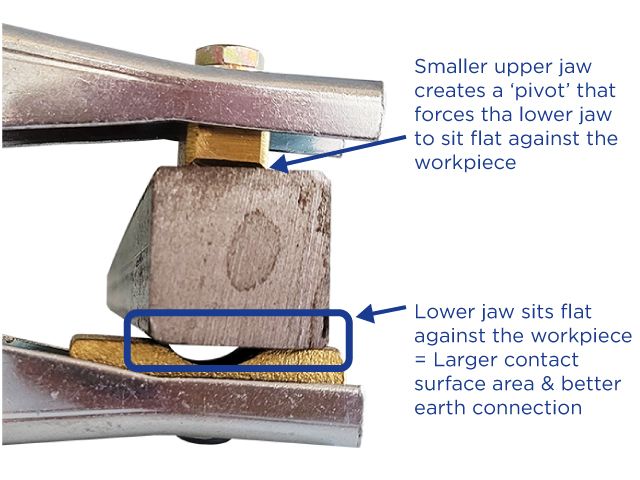

- One-piece cable terminal and jaw: Very direct current flow from the cable to the job
- Very firm cable connection, withstands high degree of cable strain
- Suitable for use on welders up to 500A-600A
- Cable terminal ID 16mm, fits cable up to 70mm2

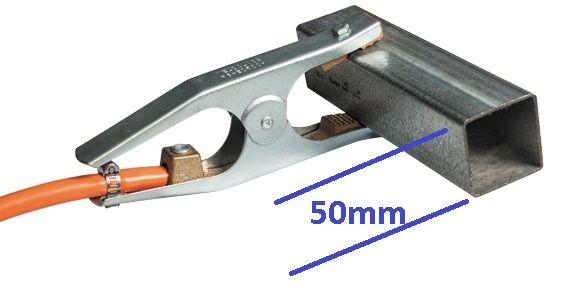

- Clamps up to 50mm RHS or pipe
- Suitable for use on welders up to 250A-300A
- Cable terminal ID 13mm, fits cable up to 35mm2
- Clamps up to 28mm RHS or pipe
Downloads
Stan - QLD
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Outstanding, I am buying five more of these 200A clamps plus one 600A for all my welding gear. Clamp of impeccable quality and it works really well, strong contact and low resistance. Welding performance increased after this was installed on 25mm wire.
19/02/24 2:13 PM
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Outstanding, I am buying five more of these 200A clamps plus one 600A for all my welding gear. Clamp of impeccable quality and it works really well, strong contact and low resistance. Welding performance increased after this was installed on 25mm wire.
19/02/24 2:13 PM
